Front Bumper Removal

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

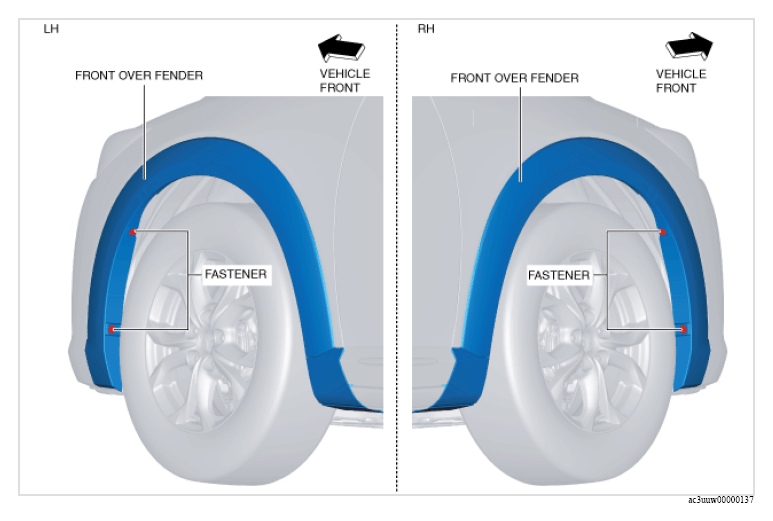

  2. Remove the fasteners.
    G13151909Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • After removing clips, insert a rag between the front fender panel and the front over fender to prevent the front fender panel and clips from being damaged.

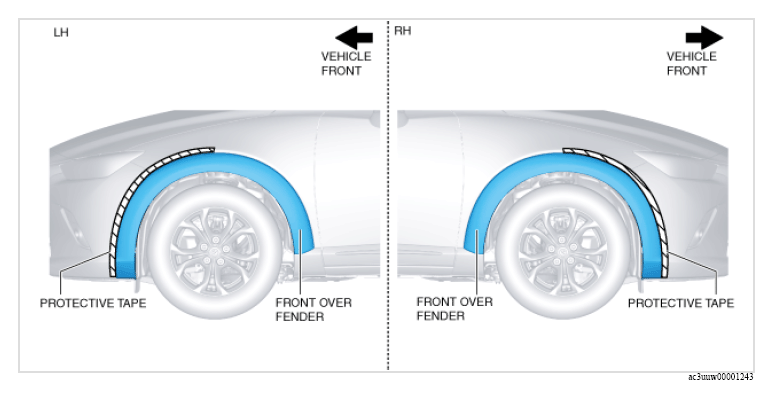

  3. Affix the protective tape to the position shown in the figure to prevent scratches and damage.
    G13151910Courtesy of MAZDA MOTORS CORP.

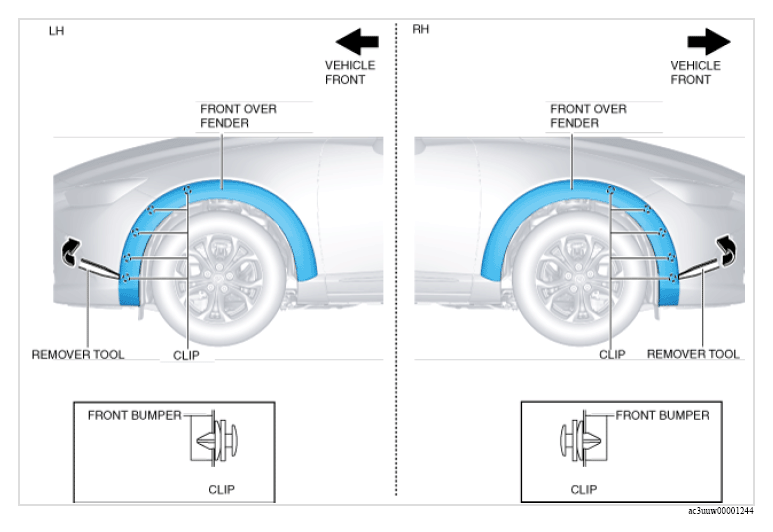

  4. Move the remover tool in the direction of the arrow shown in the figure and detach the front over fender clips from the front bumper.
    G13151911Courtesy of MAZDA MOTORS CORP.

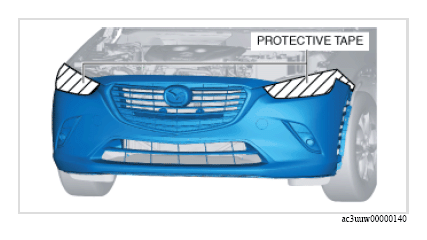

  5. Affix the protective tape to the position shown in the figure to prevent scratches and damage.
    G13151912Courtesy of MAZDA MOTORS CORP.

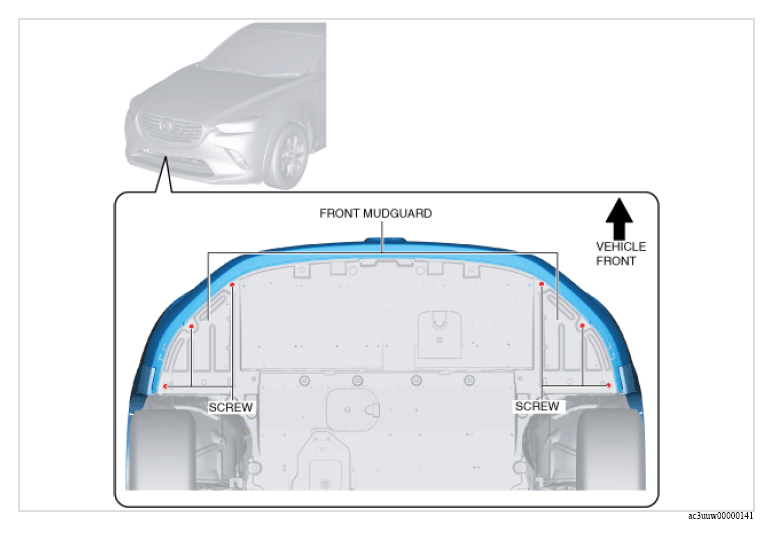

  6. Remove the screws.
    G13151913Courtesy of MAZDA MOTORS CORP.

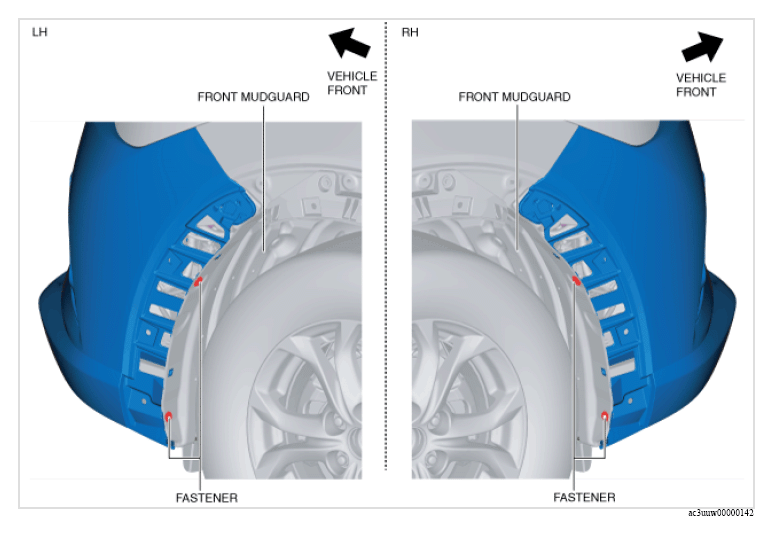

  7. Remove the fasteners.
    G13151914Courtesy of MAZDA MOTORS CORP.

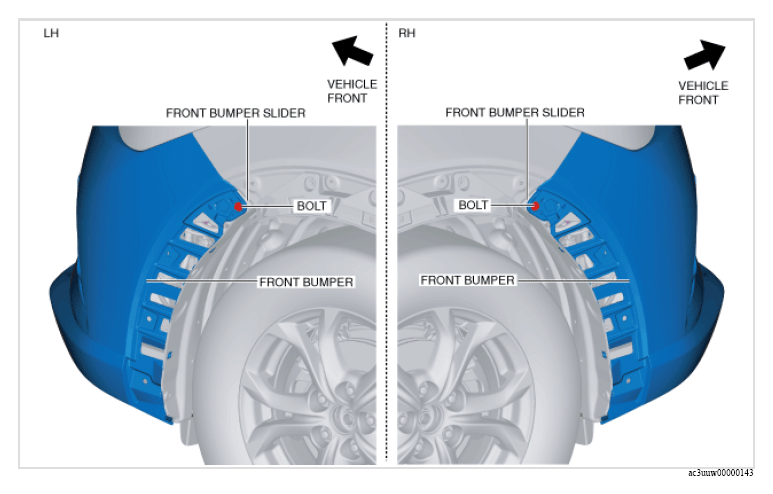

  8. Slightly bend back the front over fender and remove the bolts.
    G13151915Courtesy of MAZDA MOTORS CORP.

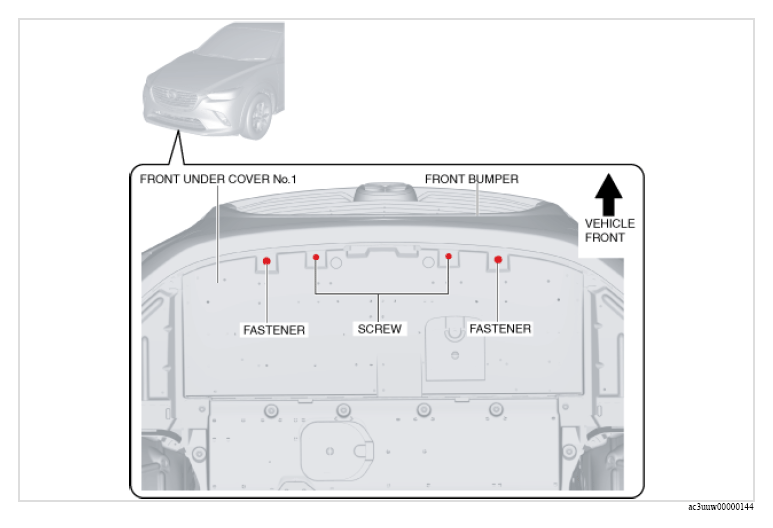

  9. Remove the screws and fasteners.
    G13151916Courtesy of MAZDA MOTORS CORP.

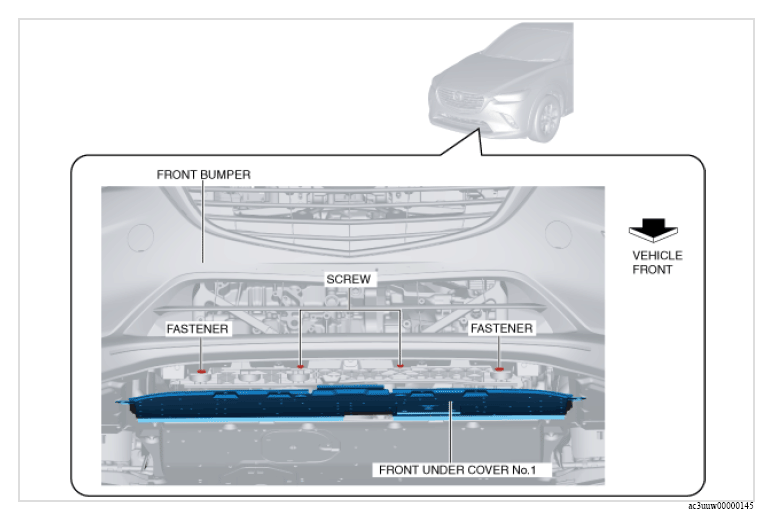

  10. Remove the screws and fasteners which can be verified at the position where front under cover No. 1 was pulled back.
    G13151917Courtesy of MAZDA MOTORS CORP.

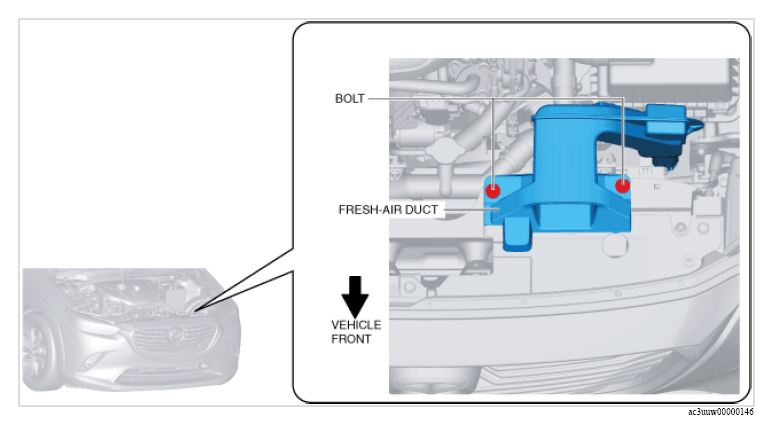

  11. Remove the bolts.
    G13151918Courtesy of MAZDA MOTORS CORP.

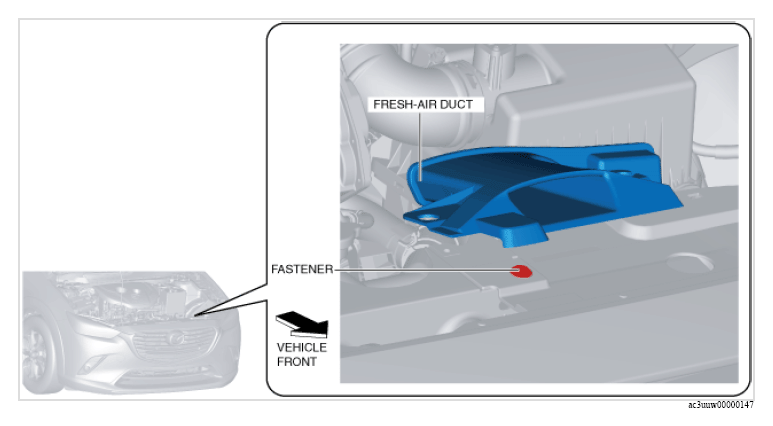

  12. Remove the fastener which can be verified at the position where the fresh-air duct was pulled back.
    G13151919Courtesy of MAZDA MOTORS CORP.

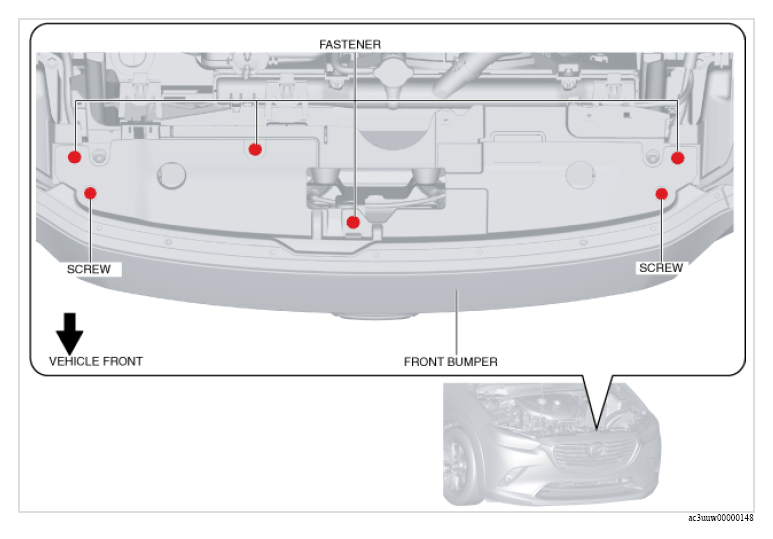

  13. Remove the screws and fasteners.
    G13151920Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • The front bumper and front bumper slider are engaged firmly. If they are disengaged forcibly the bumper could fall and be damaged. Perform the servicing carefully when disengaging the front bumper from the front bumper slider.
    • When disengaging the front bumper from the front bumper slider, the front bumper could fall and be damaged. Support the front bumper so that it does not fall.

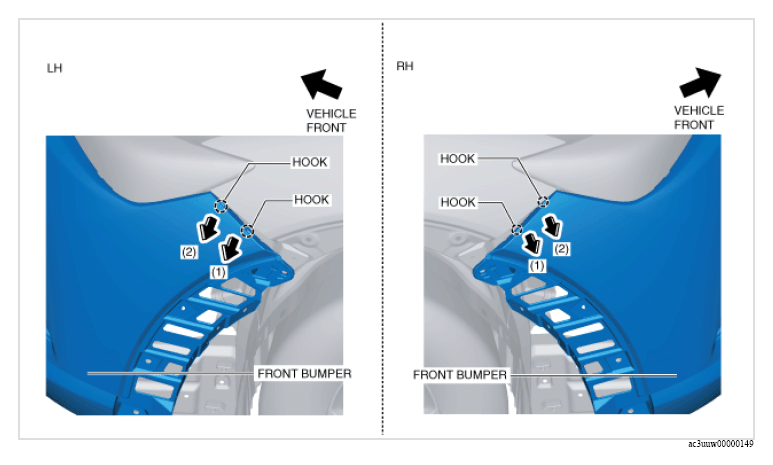

  14. Detach the front bumper from the front bumper sliders while removing the hooks in the order of the arrows shown in the figure.
    G13151921Courtesy of MAZDA MOTORS CORP.

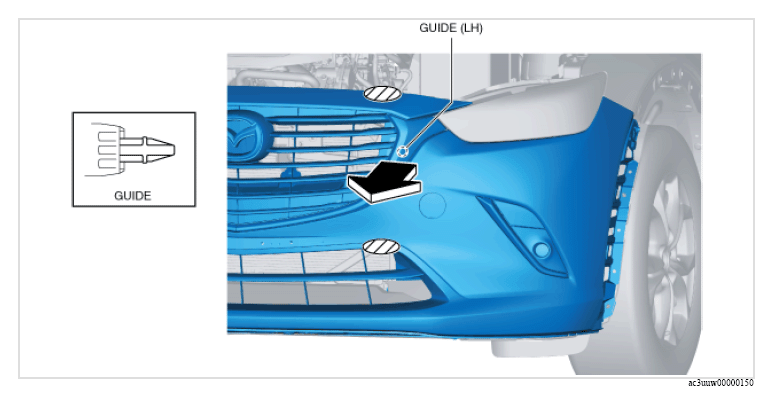

  15. Hold the shaded areas shown in the figure and pull the front bumper in the direction of the arrow to pull out the guide (LH) from the shroud panel.
    G13151922Courtesy of MAZDA MOTORS CORP.

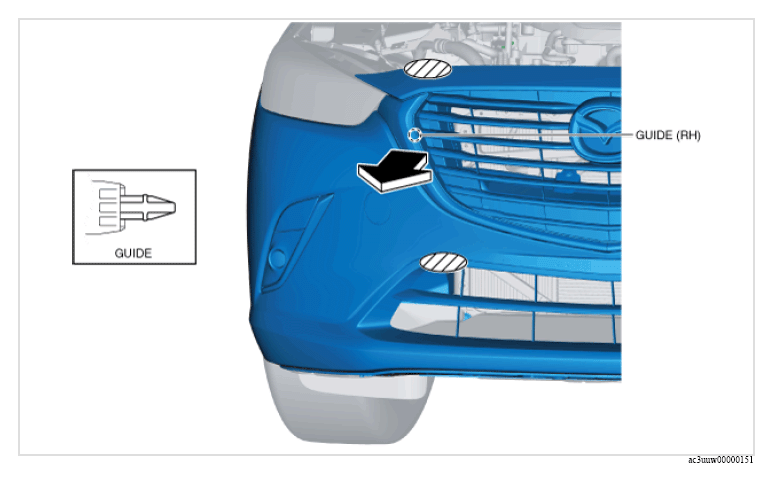

  16. Hold the shaded areas shown in the figure and pull the front bumper in the direction of the arrow to pull out the guide (RH) from the shroud panel.
    G13151923Courtesy of MAZDA MOTORS CORP.

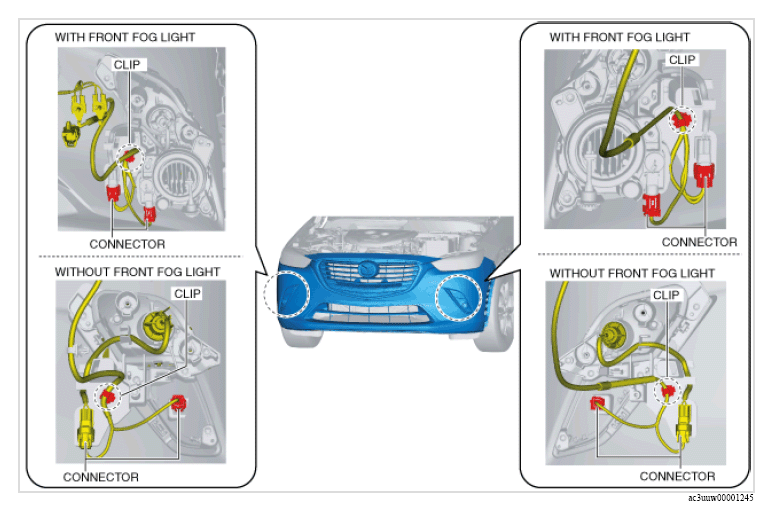

  17. Disconnect the connectors.
    G13151924Courtesy of MAZDA MOTORS CORP.
  18. Remove the clips.
    CAUTION:
    • After removing the front bumper, secure the front over fender and front mudguard with tape to prevent the front over fender from being damaged and to prevent injury.
  19. Remove the front bumper.
