DTC U2013-13: Cluster Switch Circuit Malfunction (Instrument Cluster): Notes
DTC U2013:13 (INSTRUMENT CLUSTER) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Cluster switch circuit malfunction |
| Detection condition |
- Instrument cluster detects an open circuit in the cluster switch circuit for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Cluster switch connector or terminal malfunction
- Instrument cluster connector or terminal malfunction

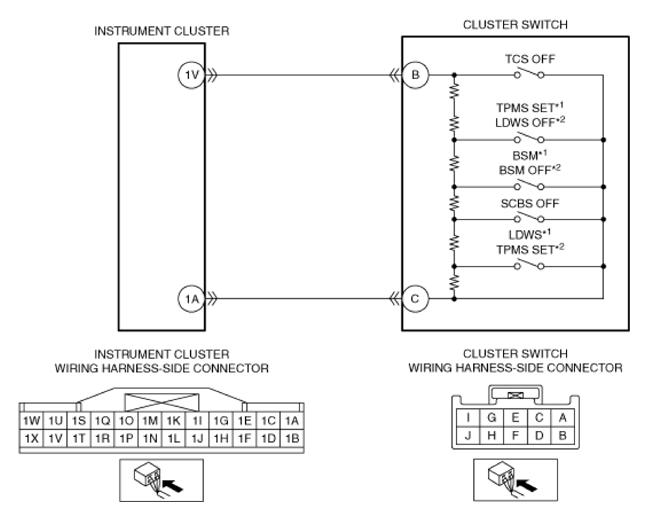

- Open circuit in wiring harness between the following terminals:
- Instrument cluster terminal 1V-Cluster switch terminal B
- Instrument cluster terminal 1A-Cluster switch terminal C
- Cluster switch malfunction
- Instrument cluster malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
*1: VIN: Except JM1 DK*****# 300001-
*2: VIN: JM1 DK*****# 300001-
