Intake Air Guide Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)

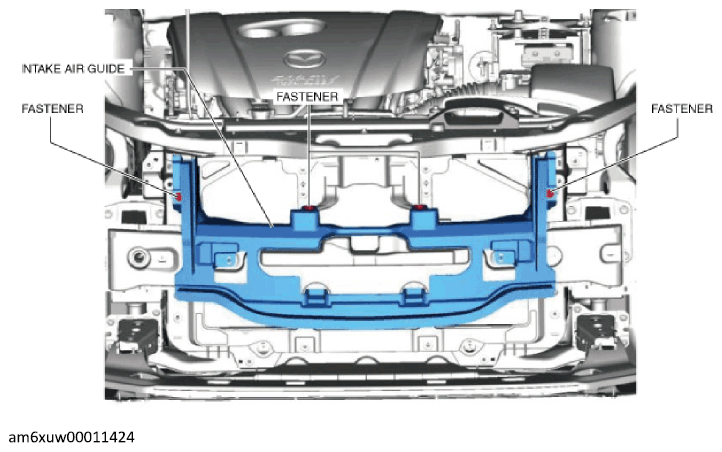

  4. Remove the fasteners.
    G12236018Courtesy of MAZDA MOTORS CORP.

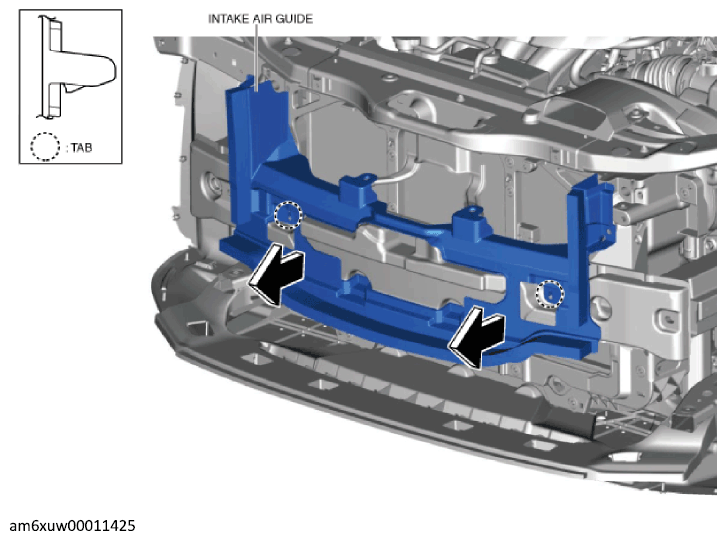

  5. Remove the intake air guide in the direction of the arrows shown in the figure while detaching the tabs.
    G12236019Courtesy of MAZDA MOTORS CORP.

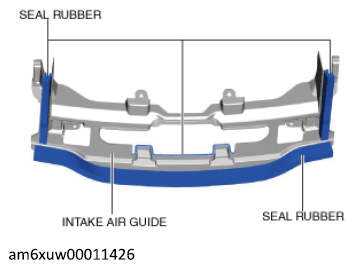

    NOTE:
    • When replacing the intake air guide, remove the seal rubbers.
    G12236020Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
