Criteria for Determining Crack in Turbine Housing

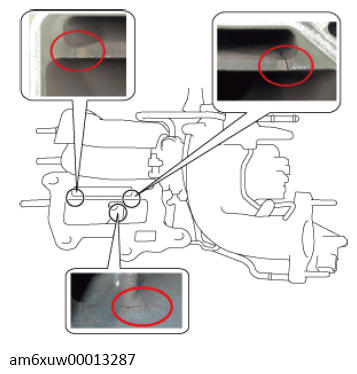

• If there is a crack in the location shown in the figure, there is no problem with the dynamic pressure turbo and it does not need to be replaced.

Courtesy of MAZDA MOTORS CORP.
