FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION

Remove the bolts.

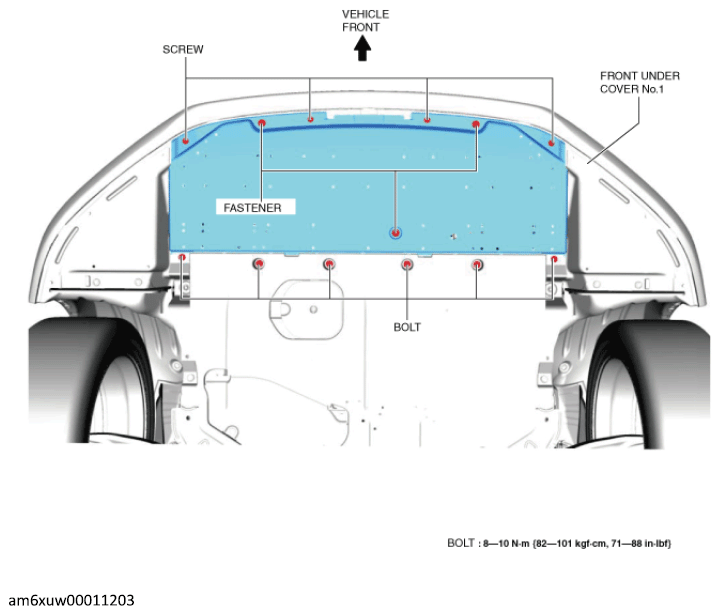

Fig 1: Front Under Cover No. 1 Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the fasteners.
Remove the screws.

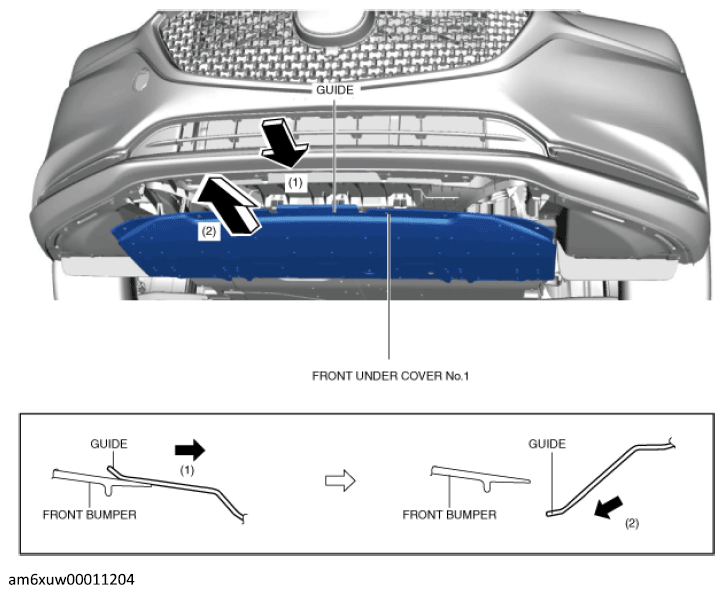

Remove the front under cover No. 1 in the direction of the arrow in the order of (1), (2) shown in the figure while detaching the guide.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
