Without multi-information display

Courtesy of MAZDA MOTORS CORP.

x: Applicable, -: Not applicable

WARNING LIGHT/INDICATOR LIGHT DESCRIPTION

No.	Warning light/Indicator light	Name	Message is displayed in center display when warning/indicator light turns on/flashes	Comment	Warning/indicator light turned on when ignition is switched ON (engine off or on)
1	Courtesy of MAZDA MOTORS CORP.	Brake system warning light	x	x	-
2	Courtesy of MAZDA MOTORS CORP.	Air bag/seat belt pre-tensioner system warning light	-	x	-
3	Courtesy of MAZDA MOTORS CORP.	Engine oil warning light	x	x	-
4	Courtesy of MAZDA MOTORS CORP.	Turn signal/hazard warning indicator lights	-	-	-
5	Courtesy of MAZDA MOTORS CORP.	Selective catalytic reduction (SCR) system warning light	x	x	SKYACTIV-D 2.2
6	Courtesy of MAZDA MOTORS CORP.	Engine oil level warning light	x	x	With engine oil level sensor
7	Courtesy of MAZDA MOTORS CORP.	ABS warning light	-	x	-
8	Courtesy of MAZDA MOTORS CORP.	Seat belt warning light	-	-	-
9	Courtesy of MAZDA MOTORS CORP.	Charging system warning light	x	x	-
10	Courtesy of MAZDA MOTORS CORP.	Security indicator light	-	-	-
11	Courtesy of MAZDA MOTORS CORP.	Door-ajar warning light	-	-	-
12	Courtesy of MAZDA MOTORS CORP.	Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light	-	-	With smart city brake support (SCBS) or smart brake support (SBS)
13	Courtesy of MAZDA MOTORS CORP.	Lane-keep assist system OFF indicator light/LDWS OFF indicator light	-	-	With lane departure warning system (LDWS) or lane-keep assist system
14	Courtesy of MAZDA MOTORS CORP.	DSC OFF indicator light	-	-	-
15	Courtesy of MAZDA MOTORS CORP.	Blind spot monitoring (BSM) OFF indicator light	-	-	With blind spot monitoring (BSM) system
16	Courtesy of MAZDA MOTORS CORP.	Electric parking brake warning light	x	x	-
17	Courtesy of MAZDA MOTORS CORP.	Low fuel warning light	x	-	-
18	Courtesy of MAZDA MOTORS CORP.	Check fuel cap warning light	x	x	-
19	Courtesy of MAZDA MOTORS CORP.	Lights-on indicator light	x	-	-
20	Courtesy of MAZDA MOTORS CORP.	HBC indicator light (green)/HBC warning light (amber)	-	x	With high beam control (HBC) system
21	Courtesy of MAZDA MOTORS CORP.	Headlight high-beam indicator light	-	-	-
22	Courtesy of MAZDA MOTORS CORP.	AUTOHOLD active indicator light	x	-	-
22	Courtesy of MAZDA MOTORS CORP.	Mazda radar cruise control with stop go function (MRCC with stop GO function) indicator light	x	-	-
23	Courtesy of MAZDA MOTORS CORP.	TCS/DSC indicator light	-	x	-
24	Courtesy of MAZDA MOTORS CORP.	Tire pressure monitoring system warning light	x	x	-
25	Courtesy of MAZDA MOTORS CORP.	LED headlight warning light	-	x	With headlight (LED type)
26	Courtesy of MAZDA MOTORS CORP.	Glow indicator light	-	-	SKYACTIV-D 2.2
27	Courtesy of MAZDA MOTORS CORP.	Check engine light	-	x	-

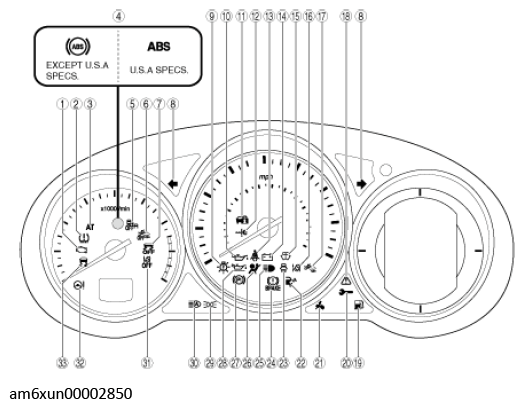

Type B

Courtesy of MAZDA MOTORS CORP.

x: Applicable, -: Not applicable

WARNING LIGHT/INDICATOR LIGHT DESCRIPTION

No	Warning light/Indicator light	Name	Message is displayed in multi-information display when warning/Indicator light turns on/flashes	Message is displayed in center display when warning/Indicator light turns on/flashes	Comment	Warning/Indicator light turned on when ignition is switched ON (engine off or on)
1	Courtesy of MAZDA MOTORS CORP.	ABS warning light	-	x	-	x
2	Courtesy of MAZDA MOTORS CORP.	Electric parking brake warning light	x	x	-	-
3	Courtesy of MAZDA MOTORS CORP.	Check engine light	-	x	-	x
4	Courtesy of MAZDA MOTORS CORP.	Engine oil level warning light	x	x	With engine oil level sensor	-
5	Courtesy of MAZDA MOTORS CORP.	Blind spot monitoring (BSM) OFF indicator light	-	-	With blind spot monitoring (BSM) system	-
6	Courtesy of MAZDA MOTORS CORP.	Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light	-	-	With smart city brake support (SCBS) or smart brake support SBS)	x
7	Courtesy of MAZDA MOTORS CORP.	Selective catalytic reduction (SCR) system warning light	x	x	SKYACTIV -D 2.2	-
8	Courtesy of MAZDA MOTORS CORP.	Turn signal/hazard warning indicator lights	-	-	-	-
9	Courtesy of MAZDA MOTORS CORP.	Glow indicator light	-	-	SKYACTIV -D 2.2	x
10	Courtesy of MAZDA MOTORS CORP.	Check fuel cap warning light	x	x	-	x
11	Courtesy of MAZDA MOTORS CORP.	Headlight high-beam indicator light	-	-	-	-
12	Courtesy of MAZDA MOTORS CORP.	Air bag/seat belt pre-tensioner system warning light	-	x	-	-
13	Courtesy of MAZDA MOTORS CORP.	Security indicator light	-	-	-	x
14	Courtesy of MAZDA MOTORS CORP.	Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)	x	x	-	x
15	Courtesy of MAZDA MOTORS CORP.	Brake system warning light	x	x	-	x
16	Courtesy of MAZDA MOTORS CORP.	Charging system warning light	x	x	-	x
17	Courtesy of MAZDA MOTORS CORP.	Seat belt warning light	-	-	-	-
18	Courtesy of MAZDA MOTORS CORP.	Engine oil warning light	x	x	-	x
19	Courtesy of MAZDA MOTORS CORP.	Lights-on indicator light	x	-	-	-
20	Courtesy of MAZDA MOTORS CORP.	HBC indicator light (green)/HBC warning light (amber)	-	x	With high beam control (HBC) system	x
21	Courtesy of MAZDA MOTORS CORP.	AUTOHOLD active indicator light	x	-	-	x
21	Courtesy of MAZDA MOTORS CORP.	Mazda radar cruise control with stop go function (MRCC with stop GO function) indicator light	x	-	-	x
22	Courtesy of MAZDA MOTORS CORP.	Lane-keep assist system OFF indicator light/LDWS OFF indicator light	-	-	With lane departure warning system (LDWS) lane-keep assist system	-
23	Courtesy of MAZDA MOTORS CORP.	TCS/DSC indicator light	-	x	-	x
24	Courtesy of MAZDA MOTORS CORP.	DSC OFF indicator light	-	-	-	x
25	Courtesy of MAZDA MOTORS CORP.	LED headlight warning light	-	x	With headlight (LED type)	-
26	Courtesy of MAZDA MOTORS CORP.	Tire pressure monitoring system warning light	x	x	-	x

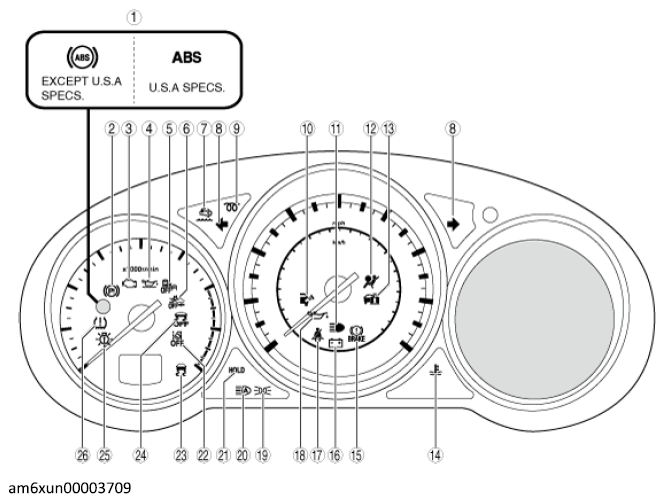

Type C

Courtesy of MAZDA MOTORS CORP.

x: Applicable, -: Not applicable

WARNING LIGHT/INDICATOR LIGHT DESCRIPTION

No	Warning light/Indicator light	Name	Mess multi-information display when warning/Indicator light turns on/flashes	Message is displayed in center display when warning/Indicator light turns on/flashes	Comment	Warning/Indicator light turned on when ignition is switched ON (engine off or on)
1	Courtesy of MAZDA MOTORS CORP.	Check engine light	x	-	x	1
2	Courtesy of MAZDA MOTORS CORP.	LED headlight warning light	x	With headlight (LED type)	x	2
3	Courtesy of MAZDA MOTORS CORP.	Automatic transaxle warning light	x	ATX	x	3
4	Courtesy of MAZDA MOTORS CORP.	AWD warning light	-	AWD	x	4
5	Courtesy of MAZDA MOTORS CORP.	ABS warning light	x	-	x	5
6	Courtesy of MAZDA MOTORS CORP.	Blind spot monitoring (BSM) OFF indicator light	-	With blind spot monitoring (BSM) system	x	6
7	Courtesy of MAZDA MOTORS CORP.	Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light	-	With smart city brake support (SCBS) or smart brake support (SBS)	x	7
8	Courtesy of MAZDA MOTORS CORP.	AUTOHOLD active indicator light	x	-	x	8
9	Courtesy of MAZDA MOTORS CORP.	Turn signal/hazard warning indicator lights	-	-	-	9
10	Courtesy of MAZDA MOTORS CORP.	Engine oil warning light	x	-	x	10
11	Courtesy of MAZDA MOTORS CORP.	Security indicator light	-	-	x	11
12	Courtesy of MAZDA MOTORS CORP.	KEY warning light (red)/KEY indicator light (green)	x	-	x	12
13	Courtesy of MAZDA MOTORS CORP.	Seat belt warning light	-	-	-	13
14	Courtesy of MAZDA MOTORS CORP.	Charging system warning light	x	-	x	14
15	Courtesy of MAZDA MOTORS CORP.	Low washer fluid level warning light	x	With washer fluid-level sensor	-	15
16	Courtesy of MAZDA MOTORS CORP.	Lane-keep assist system warning light/LDWS warning light	x	With lane departure warning system (LDWS) or lane-keep assist system	x	16
17	Courtesy of MAZDA MOTORS CORP.	Smart brake support/smart city brake support (SBS/SCBS) indicator light/Smart brake support/smart city brake support (SBS/SCBS) warning light	x	With smart city brake support (SCBS) or smart brake support (SBS)	x	17
18	Courtesy of MAZDA MOTORS CORP.	Master warning light	x	-	x	18
19	Courtesy of MAZDA MOTORS CORP.	Low fuel warning light	x	-	-	19
20	Courtesy of MAZDA MOTORS CORP.	Wrench indicator light	-	-	x	20
21	Courtesy of MAZDA MOTORS CORP.	Brake pedal operation demand indicator light	-	-	x	21
22	Courtesy of MAZDA MOTORS CORP.	Check fuel cap warning light	x	-	x	22
23	Courtesy of MAZDA MOTORS CORP.	Door-ajar warning light	-	-	-	23
24	Courtesy of MAZDA MOTORS CORP.	Brake system warning light	x	-	x	24
25	Courtesy of MAZDA MOTORS CORP.	Headlight high-beam indicator light	-	-	-	25
26	Courtesy of MAZDA MOTORS CORP.	Air bag/seat belt pretensioner system warning light	x	-	x	26
27	Courtesy of MAZDA MOTORS CORP.	Electric parking brake warning light	x	-	x	27
