Rear parking sensor buzzer

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the grove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

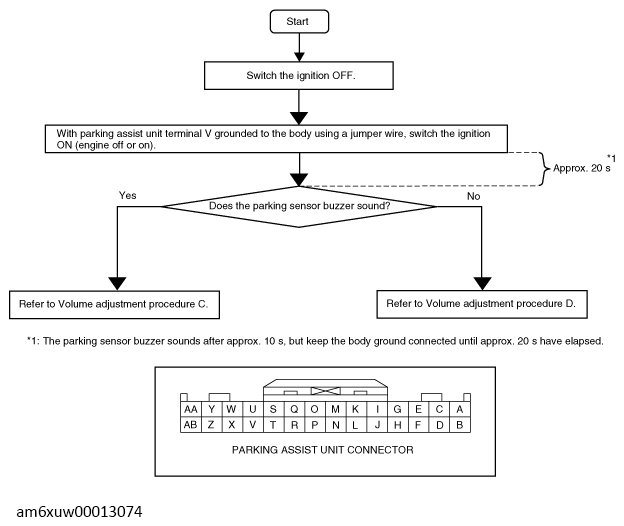

  4. Perform the following procedure to determine the correct adjustment procedure.
    G13725692Courtesy of MAZDA MOTORS CORP.
