Water-cooled Charge Air Cooler Installation Note

1. Apply engine oil to position shown in figure.

   Courtesy of MAZDA MOTORS CORP.

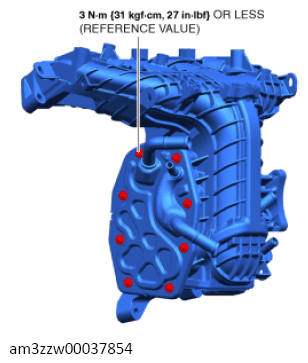

2. Temporarily tighten the bolts shown in the figure by hand.
   Fig 1: Water-Cooled Charge Air Cooler Bolts With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
3. Tighten the bolts shown in the figure.

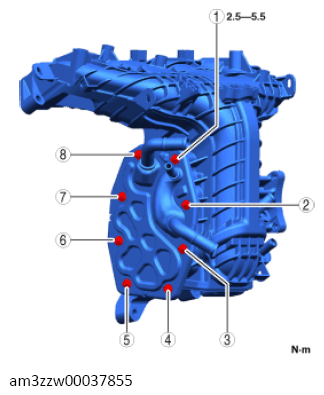

   Fig 2: Water-Cooled Charge Air Cooler Bolts With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
4. Tighten the bolts shown in the figure.

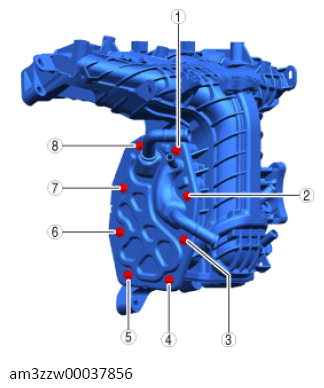

Fig 3: Water-Cooled Charge Air Cooler Bolts Tightening Sequence

Courtesy of MAZDA MOTORS CORP.
