Three Way Solenoid Valve Removal/Installation: Notes
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)

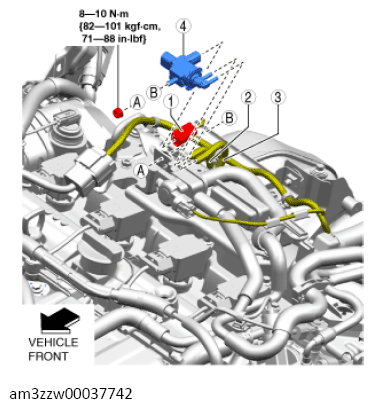

- Remove in the order indicated in the table.PART DESCRIPTION
1 Connector 2 Vacuum hose No. 1
(See VACUUM HOSE INSTALLATION NOTE .)3 Vacuum hose No. 2
(See VACUUM HOSE INSTALLATION NOTE .)4 Three way solenoid valve - Install in the reverse order of removal.
