Throttle body component Installation Note
- Remove the throttle body component.

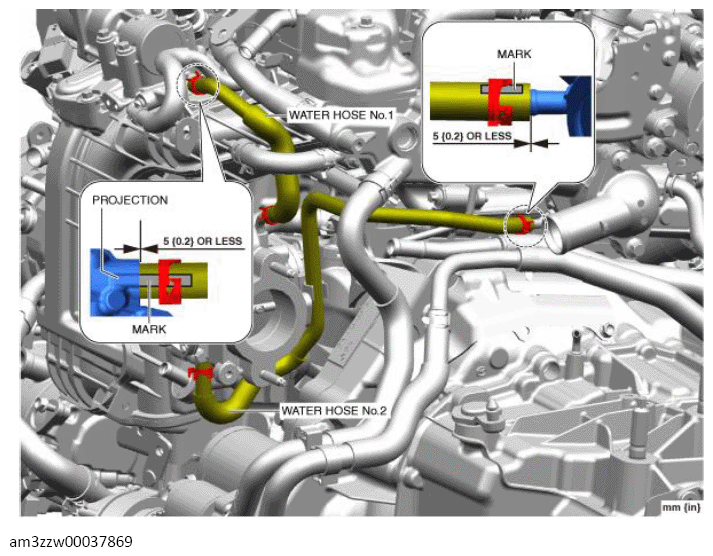

- Install the water hose No. 1 and water hose No. 2 shown in the figure.
- Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Refill the water-cooled charge air cooler coolant. (See WATER-COOLED CHARGE AIR COOLER COOLANT REPLACEMENT .)
- Install the front under cover No. 1 and front under cover No. 2. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .) (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
