Intake Manifold Component Removal Note

  1. Remove the EGR cooler. (See EGR COOLER REMOVAL/INSTALLATION .)
  2. Remove the EGR valve. (See EGR VALVE REMOVAL/INSTALLATION .)
  3. Remove the EGR pipe No. 1 and EGR pipe No. 2. (See EGR PIPE REMOVAL/INSTALLATION .)
  4. Remove the following parts. (See ELECTRIC WATER PUMP REMOVAL/INSTALLATION .)
    • Electric water pump
    • Electric water pump bracket

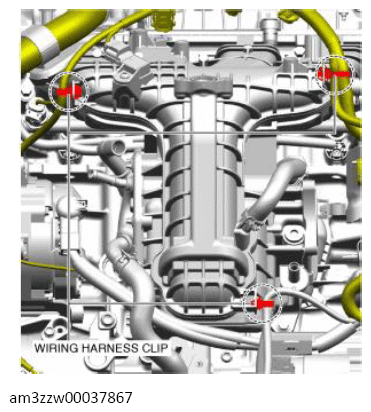

  5. Disconnect the wiring harness clip shown in the figure.
    G13713511Courtesy of MAZDA MOTORS CORP.
  6. Remove the intake manifold component.
