Air Cleaner Cover Installation Note

  1. Install the air cleaner cover as shown in the figure.
    G12184233Courtesy of MAZDA MOTORS CORP.

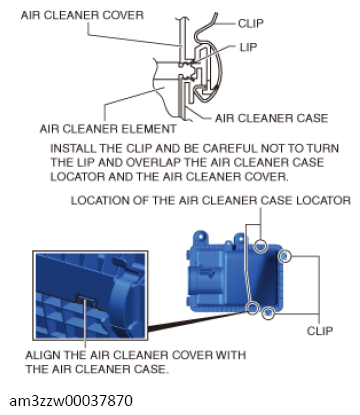

  2. Secure the air cleaner cover and the air cleaner case with the clip.
G13713516Courtesy of MAZDA MOTORS CORP.
