Intake-Air System And Turbocharger (VIN Y)
>>

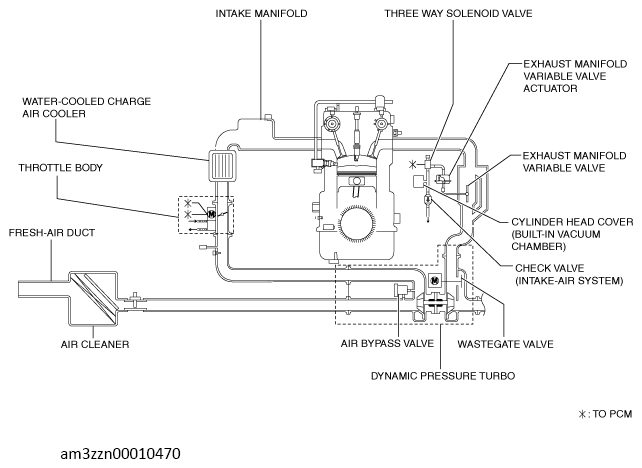

Intake-Air System Diagram
Intake-Air System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
