Check Valve (Intake-Air System) Removal/Installation: Notes

  1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

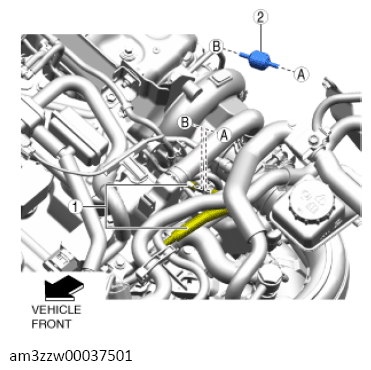

    G13713497Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Vacuum hose
    2 Check valve
    (See CHECK VALVE INSTALLATION NOTE .)
  3. Install in the reverse order of removal.
