Jack up procedure for front wheel (2WD, AWD)

CAUTION:

• Use a low-floor type garage jack. Otherwise, the jack unit may contact the front bumper when it is put under the vehicle.

1. Set the wheel blocks to the front and back of the rear wheels.

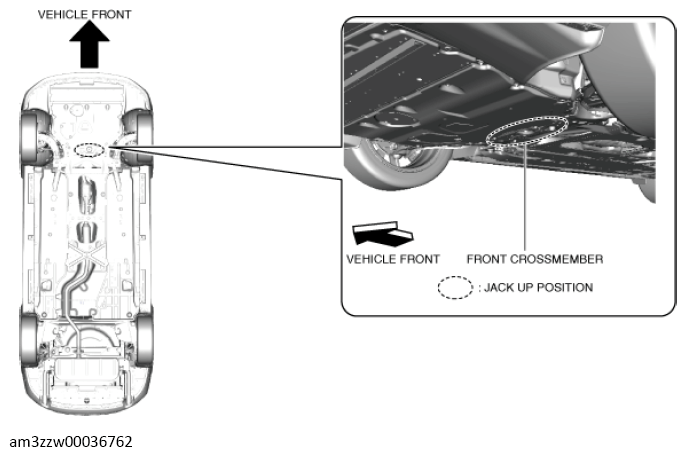

2. Set the jack to the jack up position of the front crossmember shown in the figure and jack up a front wheel.

   Courtesy of MAZDA MOTORS CORP.

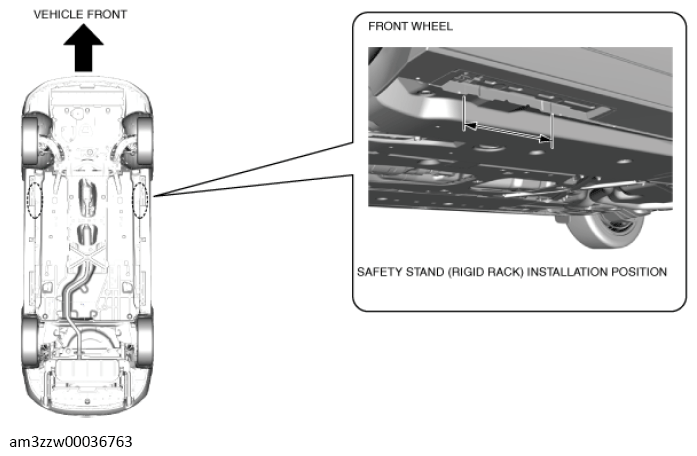

3. Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position for the front wheel shown in the figure.

Courtesy of MAZDA MOTORS CORP.
