Jack up procedure for all wheels (2WD)

  1. Set the wheel blocks to the front and back of the left front wheel.
  2. Set the jack to the center of the jack up position of the side sill on the right side shown in the figure and jack up the right front and rear wheels at the same time.

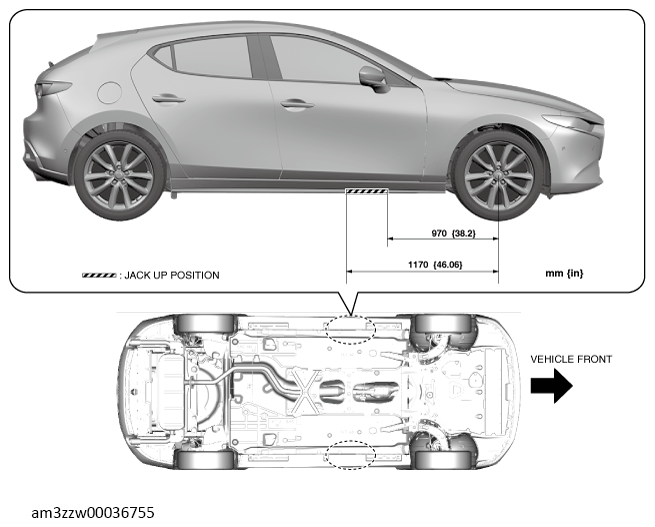

    Hatchback-5HB

    G13711799Courtesy of MAZDA MOTORS CORP.

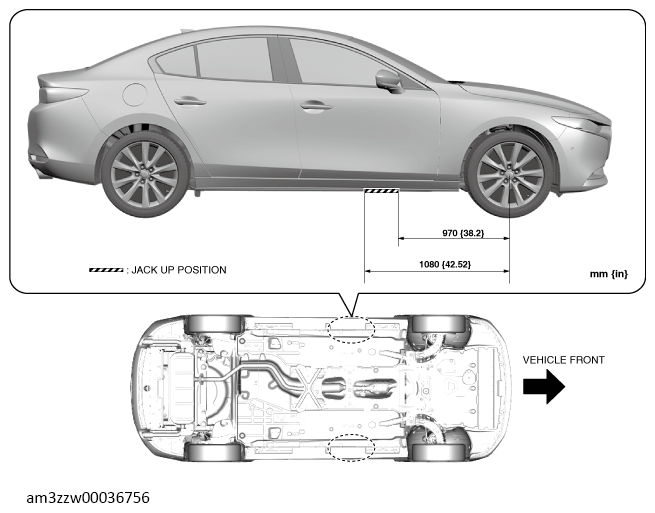

    Sedan-4SD

    G13711800Courtesy of MAZDA MOTORS CORP.

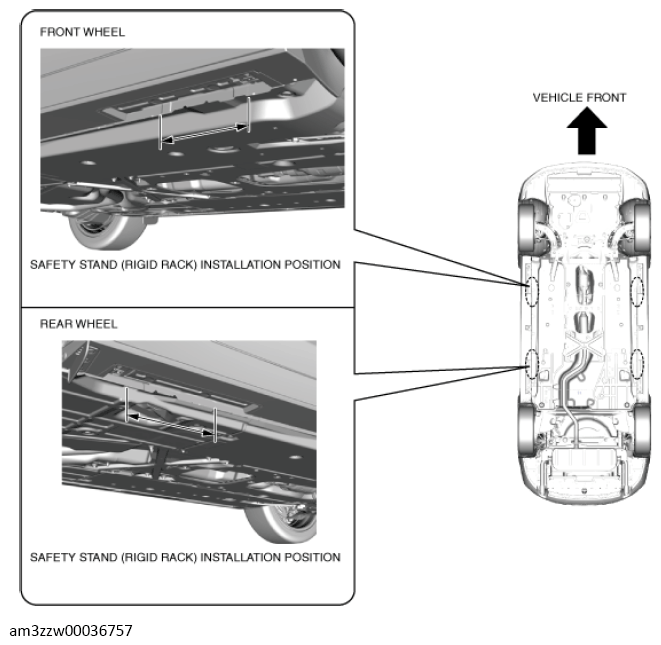

  3. Install the safety stand (rigid rack) to the safety stand (rigid rack) installation positions of the right front and rear wheels shown in the figure.
    G13711801Courtesy of MAZDA MOTORS CORP.
  4. Set the jack to the center of the jack up position of the side sill on the left side and jack up the left front and rear wheels at the same time.
  5. Install the safety stand (rigid rack) to the safety stand (rigid rack) installation positions of the left front and rear wheels.
