Vacuum Hose Removal/Installation (VIN Y) (Us)
>>
Between Intake Manifold and Vacuum Pump
>>
Vacuum hose (between intake manifold and vacuum pump) installation note
Vacuum hose (between intake manifold and vacuum pump) installation note

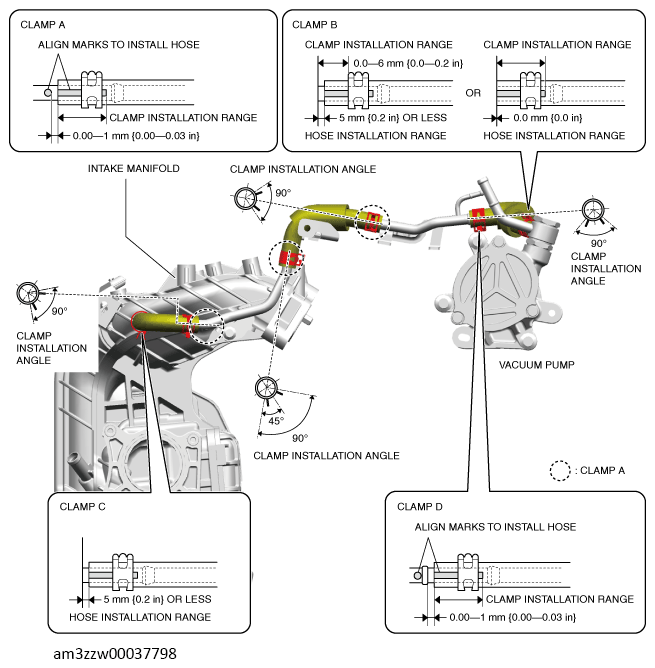

Install the vacuum hose (between intake manifold and vacuum pump) as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
