Global Positioning System (GPS) Antenna Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the passenger-side decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)

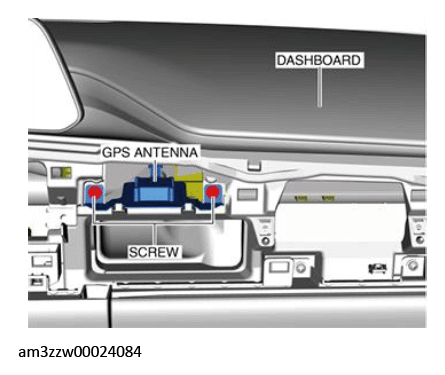

  3. Remove the screws.
    G13179830Courtesy of MAZDA MOTORS CORP.

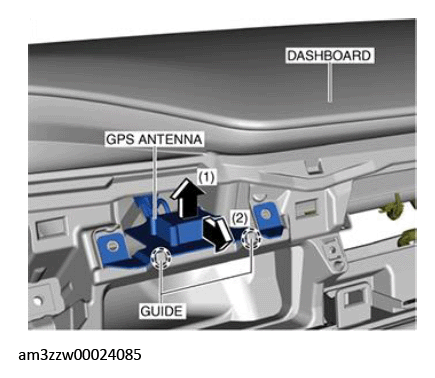

  4. Move the GPS antenna in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the guides.
    G13179831Courtesy of MAZDA MOTORS CORP.

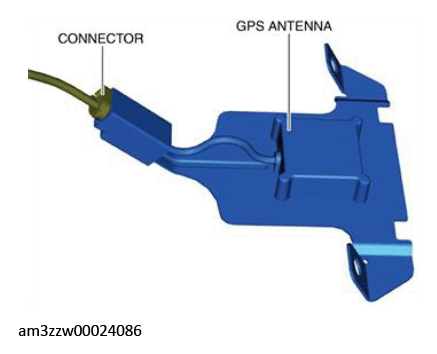

  5. Disconnect the connector.
    G13179832Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
