Vacuum Hose Removal/Installation (VIN M) (Us)
>>
Between Vacuum Pump and Power Brake Unit
>>
Vacuum hose (between vacuum pump and power brake unit) installation note
Vacuum hose (between vacuum pump and power brake unit) installation note

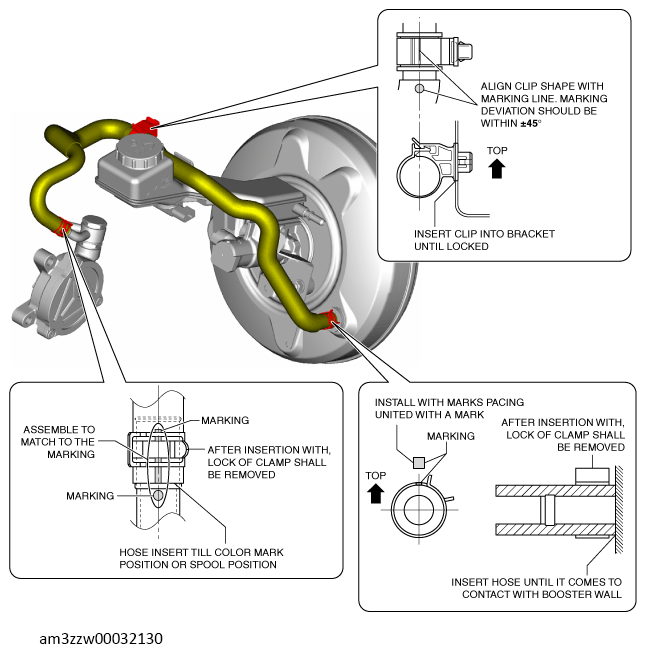

Install the vacuum hose as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
