Vacuum Hose Removal/Installation (VIN M) (Us)
>>
Between Intake Manifold and Vacuum Pump
>>

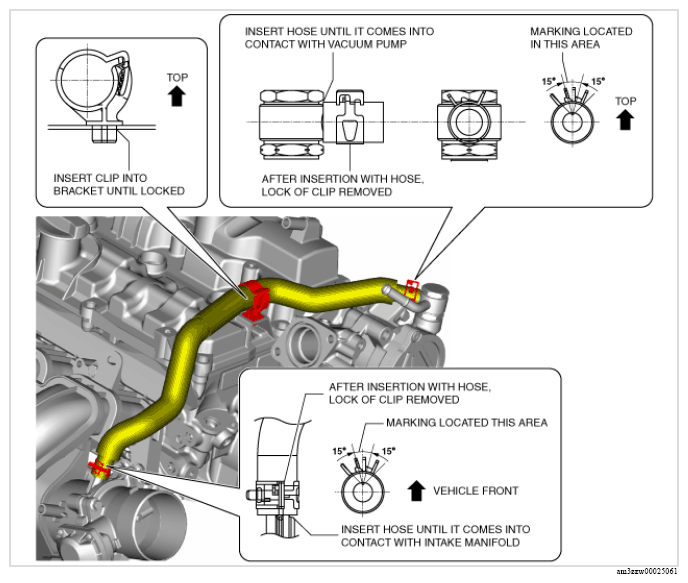

Vacuum hose (between intake manifold and vacuum pump) installation note
Vacuum hose (between intake manifold and vacuum pump) installation note
Install the vacuum hose as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
