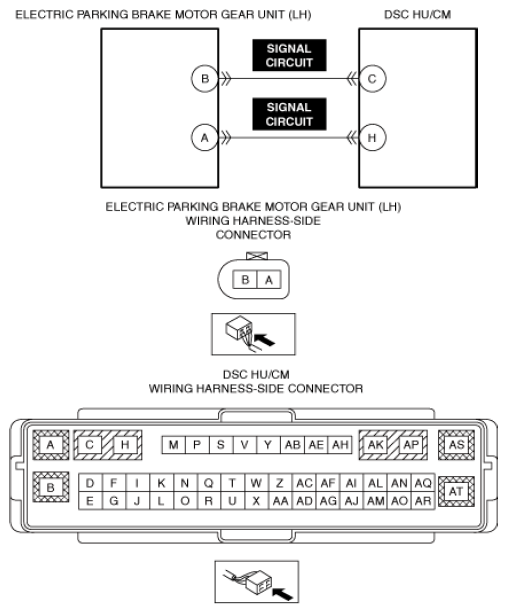

DTC C2006-13: Electric Parking Brake Motor Gear Unit (LH) [DSC HU/Cm]: Outline

DTC C2006:13 (DSC HU/CM) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Electric parking brake motor gear unit (LH)
Detection condition	The DSC HU/CM detects an open circuit in the electric parking brake motor gear unit (LH) circuit.
Fail-safe	Refer to "DTC Table" and "Fail-safe Function Malfunction Contents Table". (See DTC TABLE [DSC HU/CM (US)] .)
Possible cause	Electric parking brake motor gear unit (LH) connector or terminal malfunction DSC HU/CM connector or terminals malfunction Open circuit in electric parking brake motor gear unit (LH) signal circuit Electric parking brake motor gear unit (LH) malfunction DSC HU/CM malfunction
Courtesy of MAZDA MOTORS CORP.
