DTC C2005-19: Electric Parking Brake Motor Gear Unit (RH) [DSC HU/Cm]: Outline

DTC C2005:19 (DSC HU/CM) DETECTION CONDITION AND POSSIBLE CAUSE

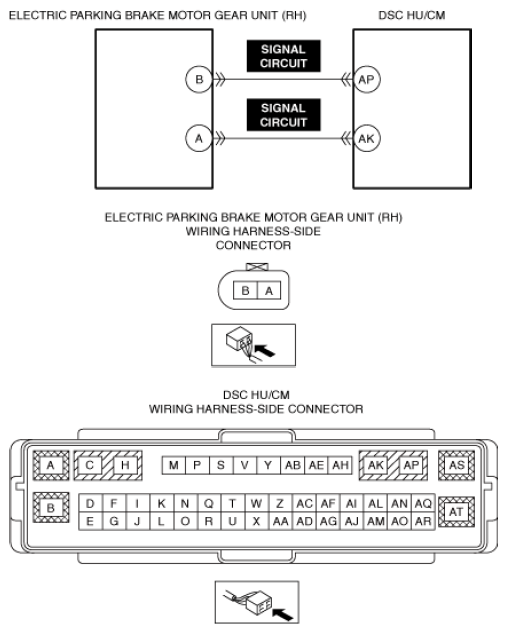

System malfunction location	Electric parking brake motor gear unit (RH)
Detection condition	The DSC HU/CM detects that the motor rotation speed during the specified time from the start of the electric parking brake motor gear unit (RH) operation is the specification or less.
Fail-safe	Refer to "DTC Table" and "Fail-safe Function Malfunction Contents Table". (See DTC TABLE [DSC HU/CM (US)] .)
Possible cause	Electric parking brake motor gear unit (RH) connector or terminal malfunction DSC HU/CM connector or terminals malfunction Short to ground in electric parking brake motor gear unit (RH) signal circuit Short to power supply in electric parking brake motor gear unit (RH) signal circuit Short circuit in electric parking brake motor gear unit (RH) signal circuit Electric parking brake motor gear unit (RH) malfunction DSC HU/CM malfunction
Courtesy of MAZDA MOTORS CORP.
