With fuel-filler lid opener cable

  1. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION (US) .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Partially peel the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION (US) .)

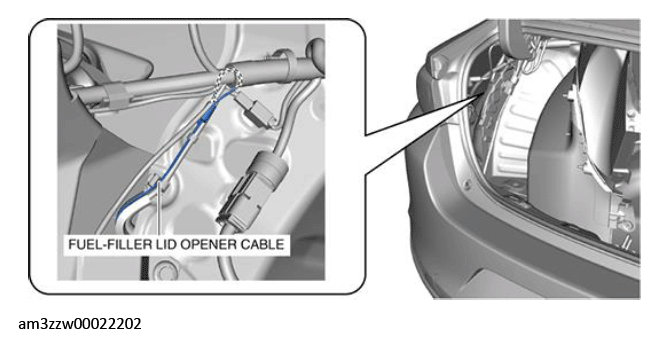

  3. Pull the fuel-filler lid opener cable and open the fuel-filler lid.
G13179030Courtesy of MAZDA MOTORS CORP.
