FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION

  1. Remove the bolts.
    Fig 1: Front Under Cover No. 1 Bolts With Torque Specification
    G13179256Courtesy of MAZDA MOTORS CORP.

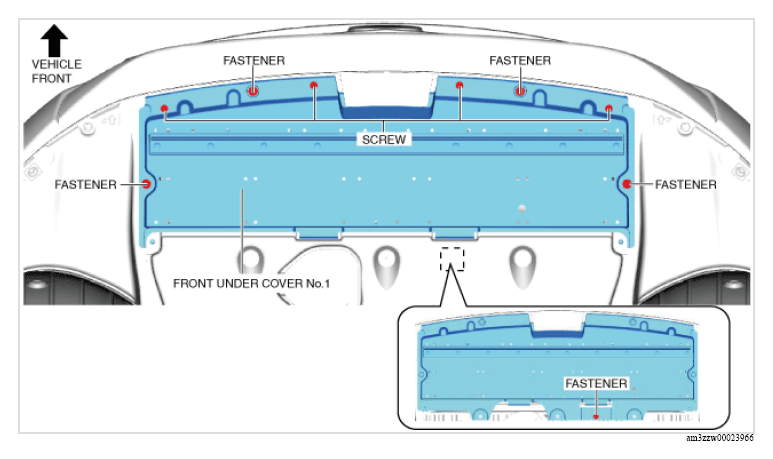

  2. Remove the screws and fasteners shown in the figure.
    G13179257Courtesy of MAZDA MOTORS CORP.

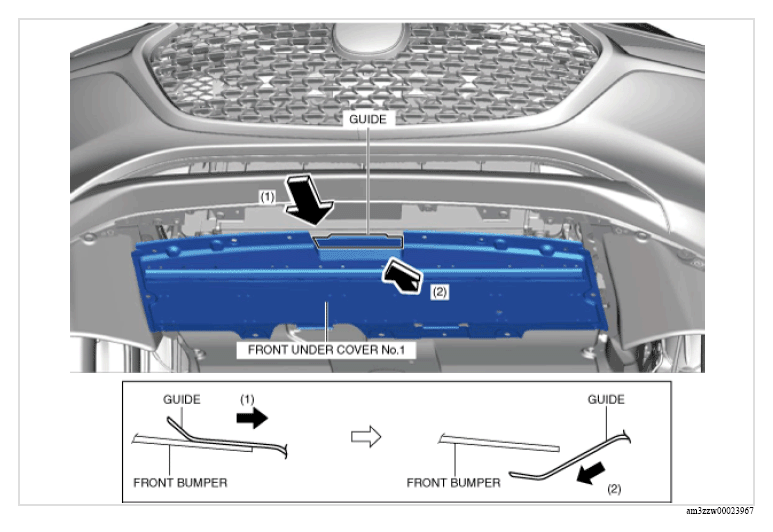

  3. Remove the front under cover No. 1 in the direction of the arrow in the order of (1), (2) shown in the figure while detaching the guide.
    G13179258Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
