Nothing Indicated On Active Driving Display: Outline
NOTHING INDICATED ON ACTIVE DRIVING DISPLAY DESCRIPTION AND POSSIBLE CAUSE
| Description |
- When the ignition is switched ON (engine off or on), nothing is indicated on the active driving display.
|
| Possible cause |
- Active driving display connector or terminal malfunction

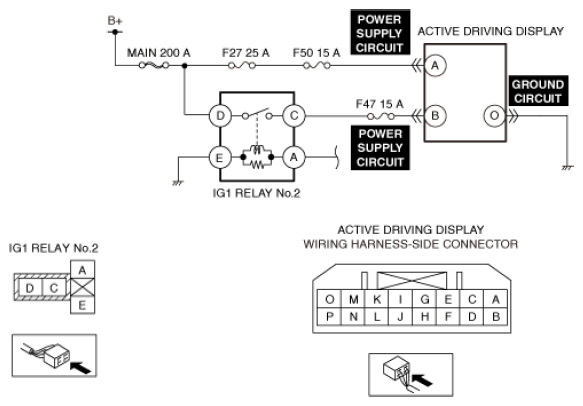

- Short to ground or open circuit in active driving display power supply circuit
- Open circuit in active driving display ground circuit
- Active driving display malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
