Bolt installation note

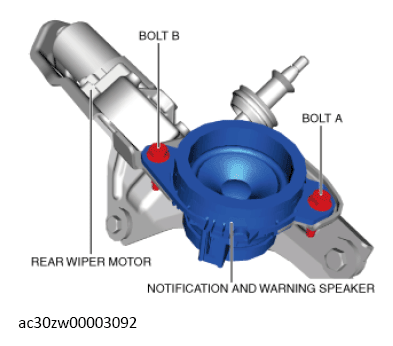

  1. Temporarily tighten bolt A.
    G13179976Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten bolt B.
  3. Completely tighten bolt A.
  4. Completely tighten bolt B.
