Horn Hi

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the horn. (See HORN REMOVAL/INSTALLATION .)

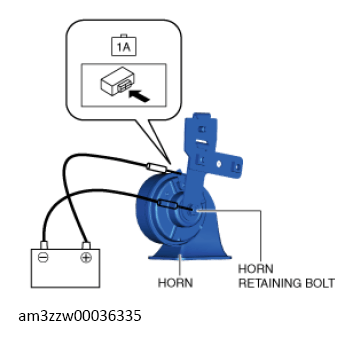

  3. Apply battery positive voltage to horn terminal, and connect the horn retaining bolt to ground as shown in the figure, and then verify that the horn sounds.
    G13179957Courtesy of MAZDA MOTORS CORP.
