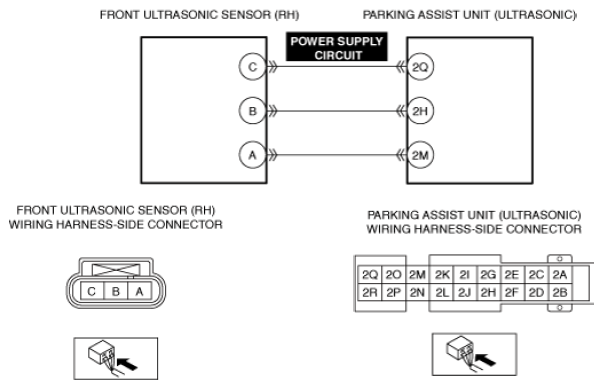

DTC B1B38-49: Front Ultrasonic Sensor (RH) Power Supply Circuit Malfunction [Parking Assist Unit (Ultrasonic)]: Outline

DTC B1B38:49 [PARKING ASSIST UNIT (ULTRASONIC)] DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Front ultrasonic sensor (RH) power supply circuit malfunction
Detection condition	The parking assist unit (ultrasonic) detects a front ultrasonic sensor (RH) power supply circuit malfunction for 11 s.
Fail-safe	(See DTC TABLE [PARKING ASSIST UNIT (ULTRASONIC) (US)] .)
Possible cause	Front bumper malfunction Front ultrasonic sensor (RH) connector or terminal malfunction Parking assist unit (ultrasonic) connector or terminal malfunction Short to ground in front ultrasonic sensor (RH) power supply circuit Short to power supply in front ultrasonic sensor (RH) power supply circuit Open circuit in front ultrasonic sensor (RH) power supply circuit Front ultrasonic sensor (RH) malfunction Parking assist unit (ultrasonic) malfunction
Courtesy of MAZDA MOTORS CORP.
