DTC P0460-13: Fuel Gauge Sender Unit Circuit Malfunction [(BCM) (Us)]: Outline

DTC P0460:13 (BODY CONTROL MODULE - US) DETECTION CONDITION AND POSSIBLE CAUSE

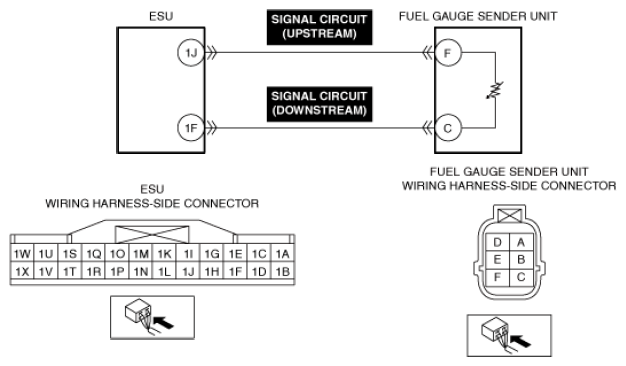

System malfunction location	Fuel gauge sender unit circuit malfunction
Detection condition	The electrical supply unit (ESU) detects an open circuit in the fuel gauge sender unit circuit.
Fail-safe	Not applicable
Possible cause	Fuel gauge sender unit connector or terminal malfunction Fuel gauge sender unit malfunction Electrical supply unit (ESU) connector or terminal malfunction Open circuit in fuel gauge sender unit signal circuit (upstream) Electrical supply unit (ESU) malfunction Body control module (BCM) malfunction
Courtesy of MAZDA MOTORS CORP.
