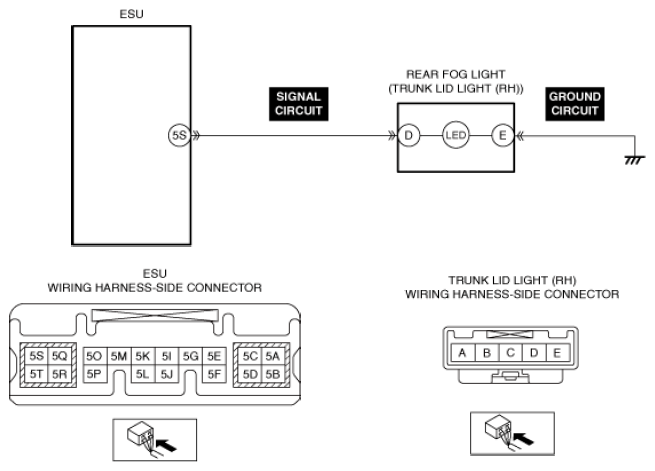

Sedan-4SD (R.H.D.): Outline
DTC B1A79:14 (BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE - Sedan-4SD (R.H.D)
| System malfunction location |
Rear fog light circuit malfunction |
| Detection condition |
- The electrical supply unit (ESU) detects a short to ground in the rear fog light circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Trunk lid light (RH) connector or terminal malfunction
- Electrical supply unit (ESU) connector or terminal malfunction
- Short to ground in rear fog light signal circuit
- Rear fog light malfunction
- Electrical supply unit (ESU) malfunction
- Body control module (BCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
