DTC B14E3-09: Rear Power Window Motor (Driver's Side) Malfunction [(BCM) (Us)]: Outline

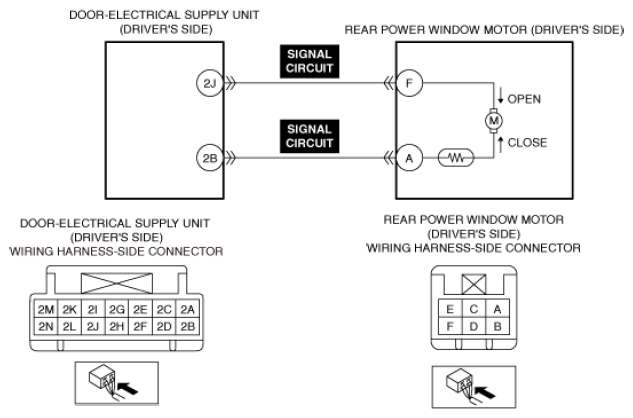

DTC B14E3:09 (BODY CONTROL MODULE - US) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Rear power window motor (driver's side) malfunction
Detection condition	The door-electrical supply unit (driver's side) detects the rear power window motor (driver's side) malfunction.
Fail-safe	Not applicable
Possible cause	Rear power window motor (driver's side) connector or terminal malfunction Door-electrical supply unit (driver's side) connector or terminal malfunction Short to ground in rear power window motor (driver's side) signal circuit Short to power supply in rear power window motor (driver's side) signal circuit Open circuit in rear power window motor (driver's side) signal circuit Rear power window motor (driver's side) malfunction Door-electrical supply unit (driver's side) malfunction Body control module (BCM) malfunction
Courtesy of MAZDA MOTORS CORP.
