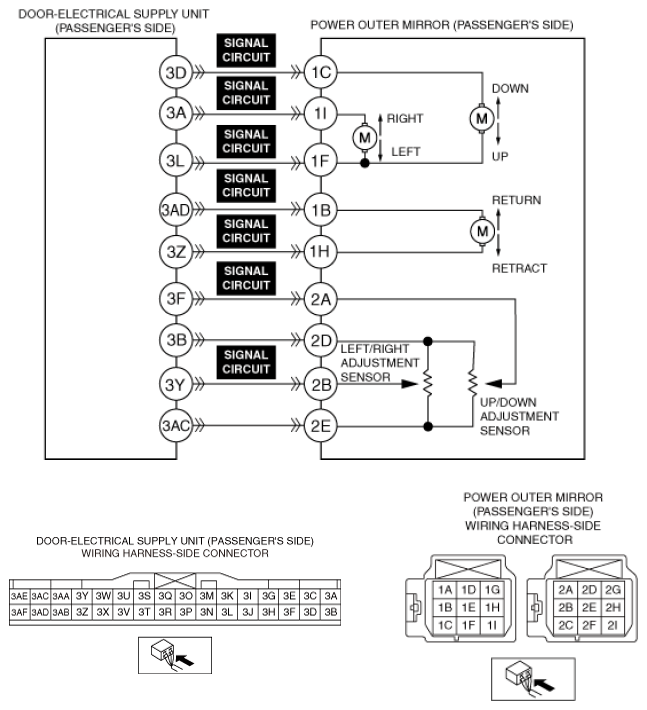

DTC B11F7-09: Power Outer Mirror (Passenger's Side) Malfunction [(BCM)]: Outline

DTC B11F7:09 (BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Power outer mirror (passenger's side) malfunction
Detection condition	The door-electrical supply unit (passenger's side) detects the power outer mirror (passenger's side) malfunction.
Fail-safe	Not applicable
Possible cause	Power outer mirror (passenger's side) connector or terminal malfunction Door-electrical supply unit (passenger's side) connector or terminal malfunction Short to ground in power outer mirror (passenger's side) signal circuit Short to power supply in power outer mirror (passenger's side) signal circuit Open circuit in power outer mirror (passenger's side) signal circuit Power outer mirror (passenger's side) malfunction Door-electrical supply unit (passenger's side) malfunction Body control module (BCM) malfunction
Courtesy of MAZDA MOTORS CORP.
