Rear Cross Traffic Alert (RCTA) Warning Indication Does Not Flash: Outline
REAR CROSS TRAFFIC ALERT (RCTA) WARNING INDICATION DOES NOT FLASH DESCRIPTION AND POSSIBLE CAUSE
| Description |
- The rear cross traffic alert (RCTA) warning indication does not flash under flash conditions.
|
| Possible cause |
- Function temporarily disabled
- Poor installation, damage, deformity, or looseness of rear side radar sensor bracket, rear bumper (including moderate impacts)
- Connector or terminal malfunction of the following parts:
- Door-electrical supply unit
- Power outer mirror

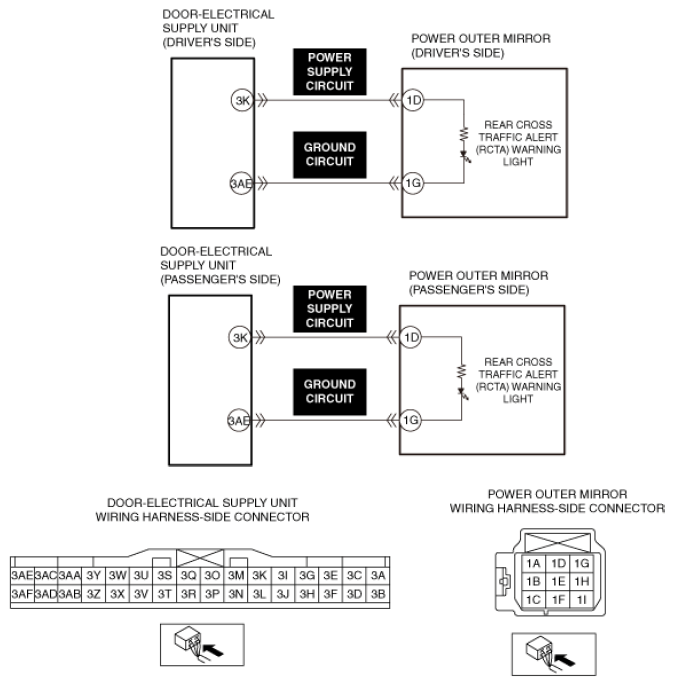

- Short to ground or open circuit in rear cross traffic alert (RCTA) warning indicator light power supply circuit
- Short to power supply or open circuit in rear cross traffic alert (RCTA) warning indicator light ground circuit
- Power outer mirror malfunction
- Active driving display malfunction
- Instrument cluster malfunction
- Rear side radar sensor malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
