Trunk Side Pocket Removal/Installation

  1. Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)
  2. Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION .)

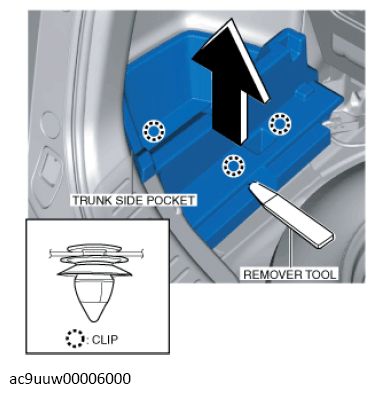

  3. Using the remover tool, remove the trunk side pocket (LH) in the direction of the arrow shown in the figure while detaching the clips.
    G13573773Courtesy of MAZDA MOTORS CORP.

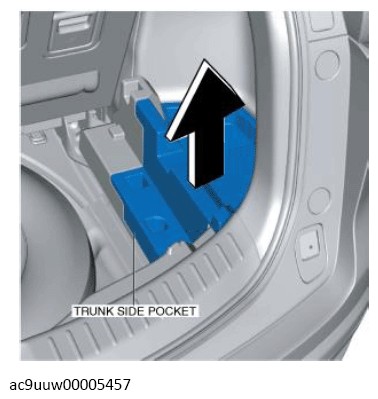

  4. Remove the trunk side pocket (RH) in the direction of the arrow shown in the figure.
    G13573774Courtesy of MAZDA MOTORS CORP.

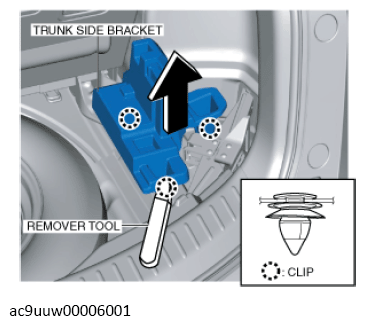

  5. Using the remover tool, remove the trunk side bracket in the direction of the arrow shown in the figure while detaching the clips.
    G13573775Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
