DTC U3003-16: [Active Driving Display]: Notes
DTC U3003:16 (ACTIVE DRIVING DISPLAY) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Low power supply voltage input to active driving display |
| Detection condition |
- Active driving display power supply circuit voltage of less than 10 V is detected.
|
| Fail-safe |
Not applicable |
| Possible cause |
- DTCs are stored in the PCM.
- Battery malfunction
- Generator malfunction
- Instrument cluster connector or terminal malfunction
- Active driving display connector or terminal malfunction

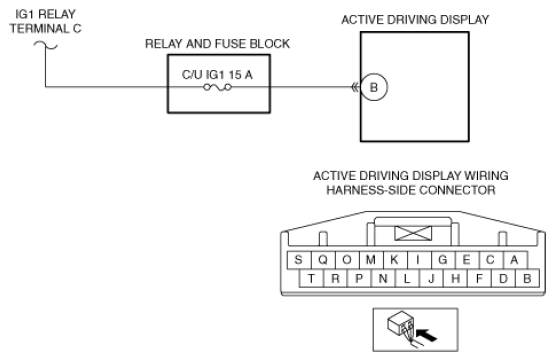

- Active driving display power supply circuit malfunction
- Short to ground in wiring harness between active driving display terminal B and IG1 relay terminal C
- Open circuit in wiring harness between active driving display terminal B and IG1 relay terminal C
- C/U IG1 15 A fuse malfunction
|
