FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION

  1. Remove the bolts.

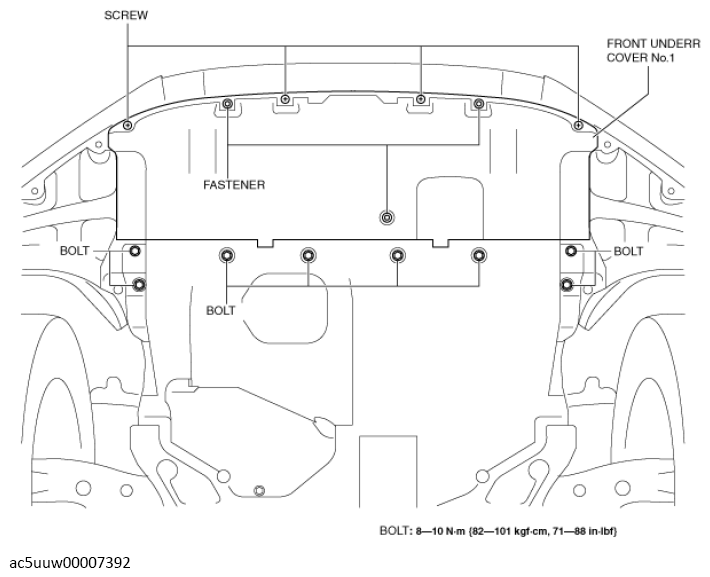

    Fig 1: Front Under Cover No. 1, Fasteners, Screws And Bolts With Torque Specification
    G13114764Courtesy of MAZDA MOTORS CORP.
  2. Remove the screws.
  3. Remove the fasteners.
  4. Remove the front under cover No. 1.
  5. Install in the reverse order of removal.
