Front Bumper Installation

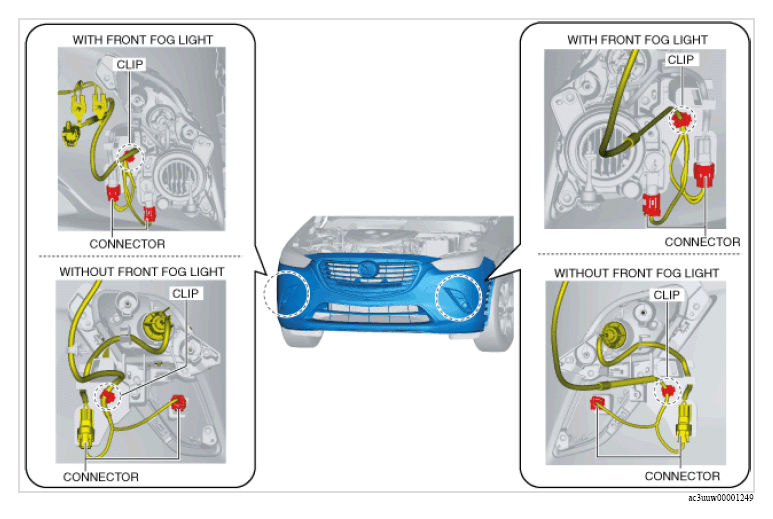

  1. Install the clips.
    G13151885Courtesy of MAZDA MOTORS CORP.
  2. Connect the connectors.

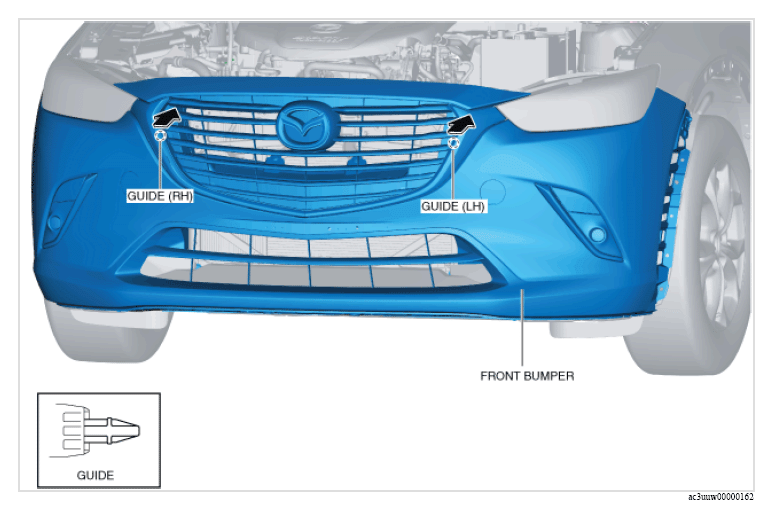

  3. Move the front bumper in the direction of the arrow shown in the figure and insert the guides to the shroud panel.
    G13151886Courtesy of MAZDA MOTORS CORP.

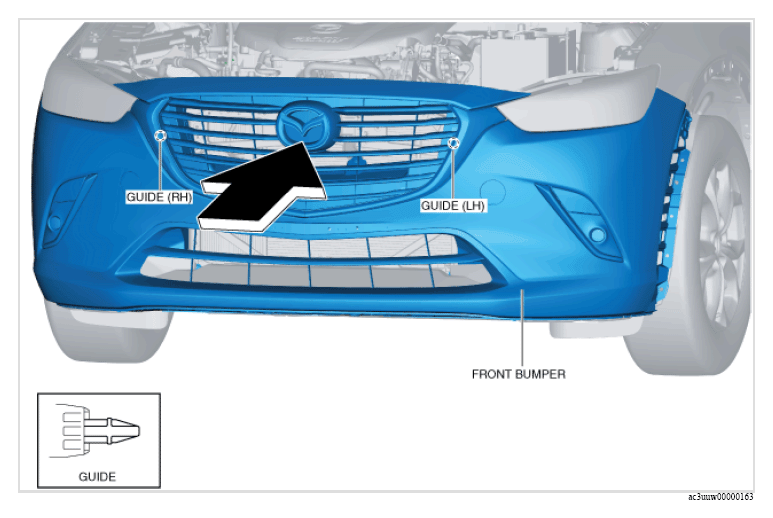

  4. Press in the front bumper in the direction of the arrow shown in the figure and install the guides to the shroud panel.
    G13151887Courtesy of MAZDA MOTORS CORP.

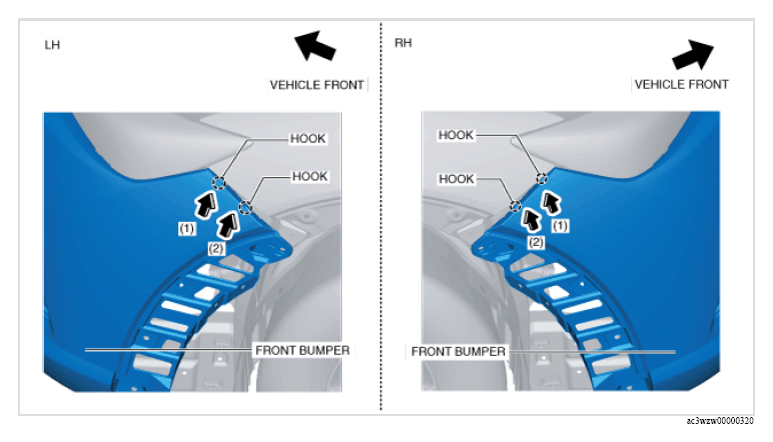

  5. Install the front bumper in the order of arrows shown in the figure.
    G13151888Courtesy of MAZDA MOTORS CORP.

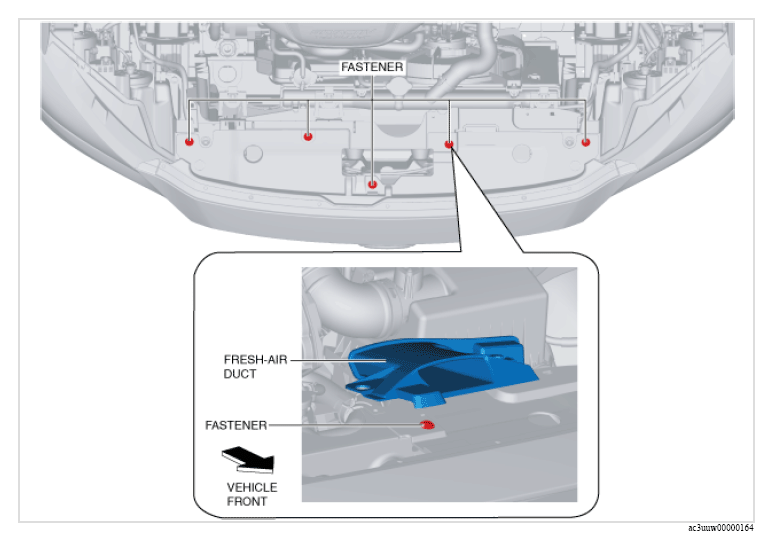

  6. Install the fasteners.
    G13151889Courtesy of MAZDA MOTORS CORP.

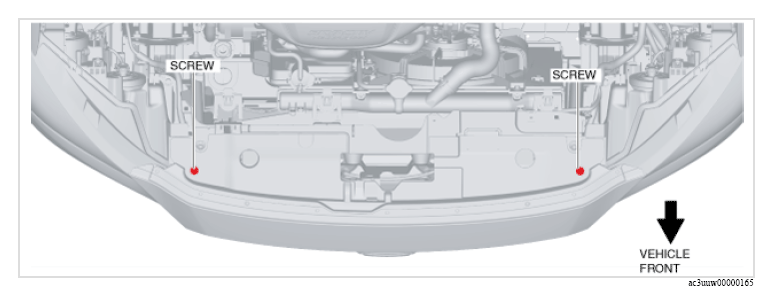

  7. Temporarily tighten the screws.
    G13151890Courtesy of MAZDA MOTORS CORP.

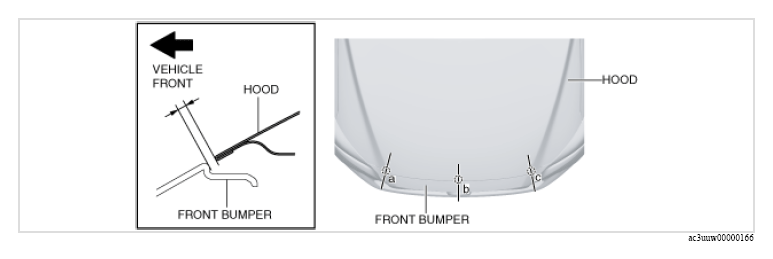

  8. Adjust the front bumper position so that the clearance between the front bumper and the hood is within the specification.
    G13151891Courtesy of MAZDA MOTORS CORP.

    Standard clearance

    1. 2.2-5.8 mm {0.09-0.22 in}
    2. 1.7-5.3 mm {0.07-0.20 in}
    3. 2.2-5.8 mm {0.09-0.22 in}
  9. Completely tighten the screws tightened temporarily in Step 8.
    G13151892Courtesy of MAZDA MOTORS CORP.

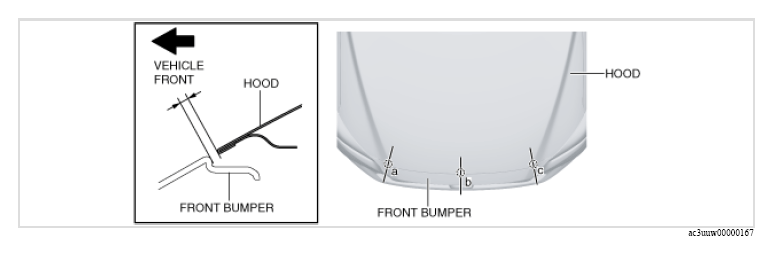

  10. Verify that the gap between the front bumper and the hood is within the specification.
    G13151893Courtesy of MAZDA MOTORS CORP.

    Standard clearance

    1. 2.2-5.8 mm {0.09-0.22 in}
    2. 1.7-5.3 mm {0.07-0.20 in}
    3. 2.2-5.8 mm {0.09-0.22 in}
      • If not within the specification, repeat from Step  8 to Step  11 until the clearance between the front bumper and the hood is within the specification.

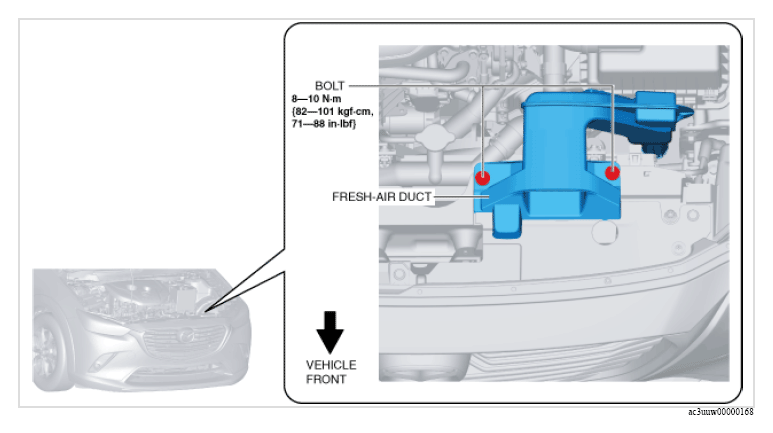

  11. Install the bolts.
    Fig 1: Fresh-Air Duct And Bolts With Torque Specification
    G13151894Courtesy of MAZDA MOTORS CORP.

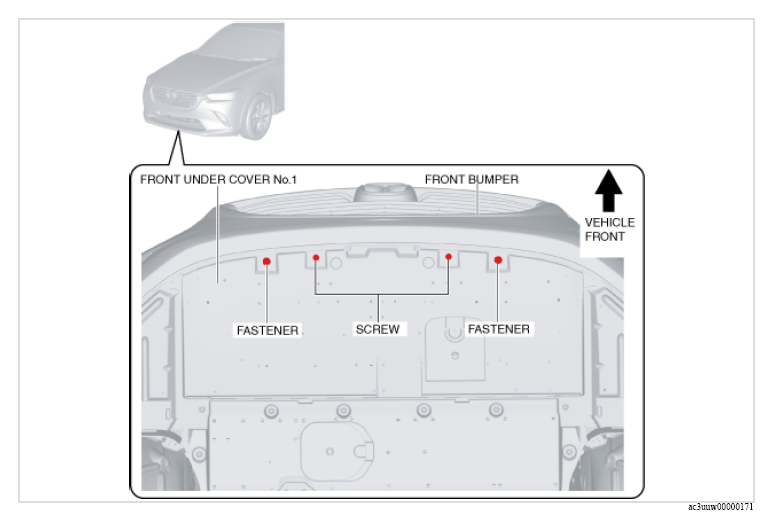

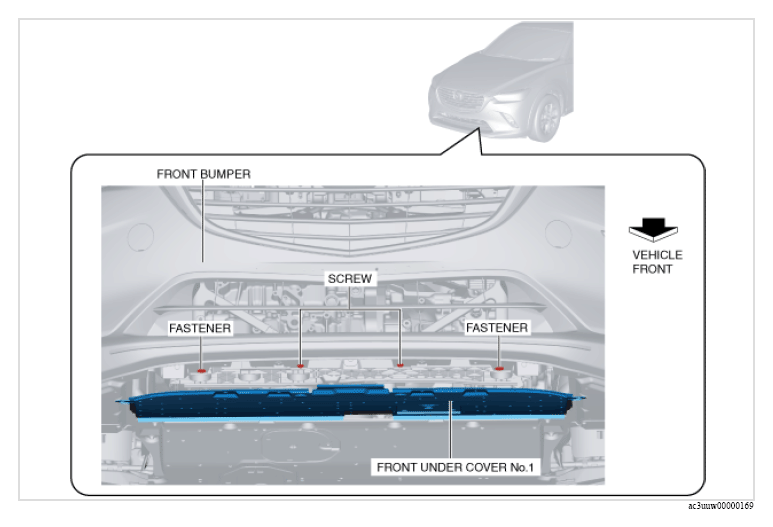

  12. Install the screws and fasteners which can be verified at the position where front under cover No. 1 was pulled back.
    G13151895Courtesy of MAZDA MOTORS CORP.

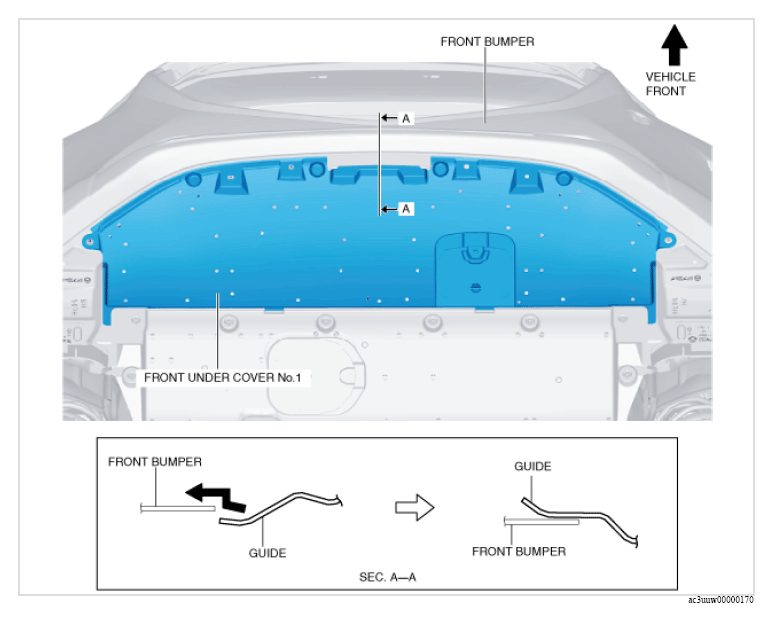

  13. Move the front under cover No. 1 guide in the direction of the arrow shown in the figure and insert it into the inner side of the front bumper.
    G13151896Courtesy of MAZDA MOTORS CORP.
  14. Install the fasteners and screws.
    G13151897Courtesy of MAZDA MOTORS CORP.

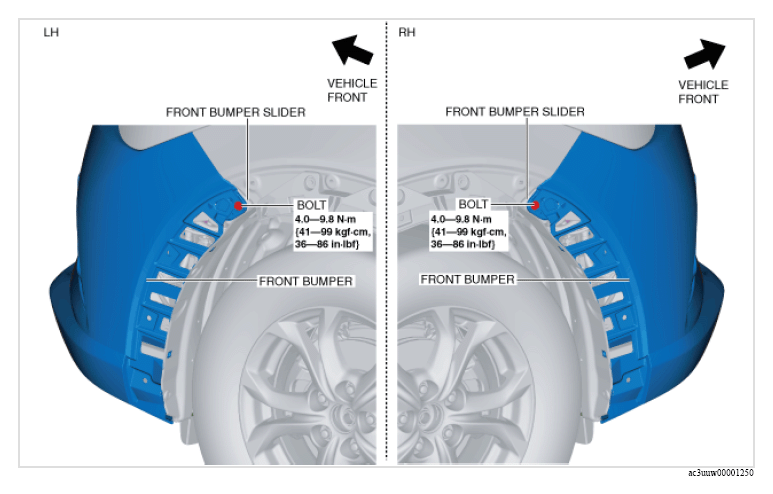

  15. Slightly bend back the front over fender and install the bolts.
    Fig 2: Front Bumper, Front Bumper Slider And Bolts With Torque Specification
    G13151898Courtesy of MAZDA MOTORS CORP.

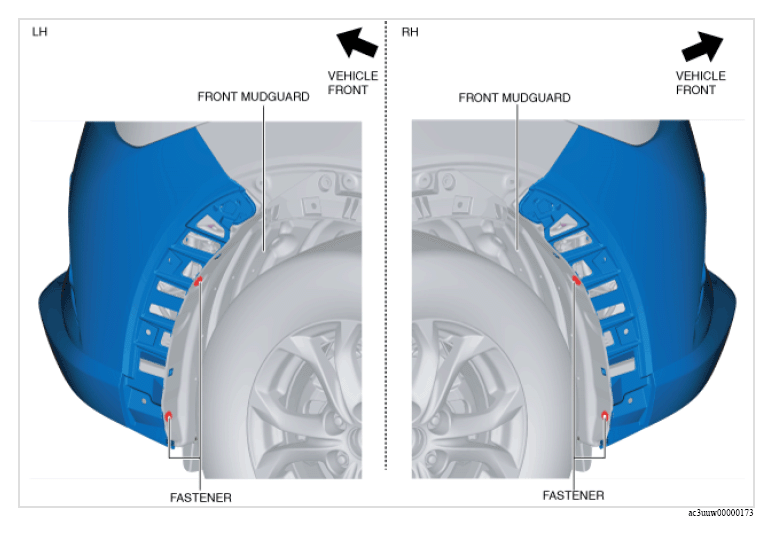

  16. Install the fasteners.
    G13151899Courtesy of MAZDA MOTORS CORP.

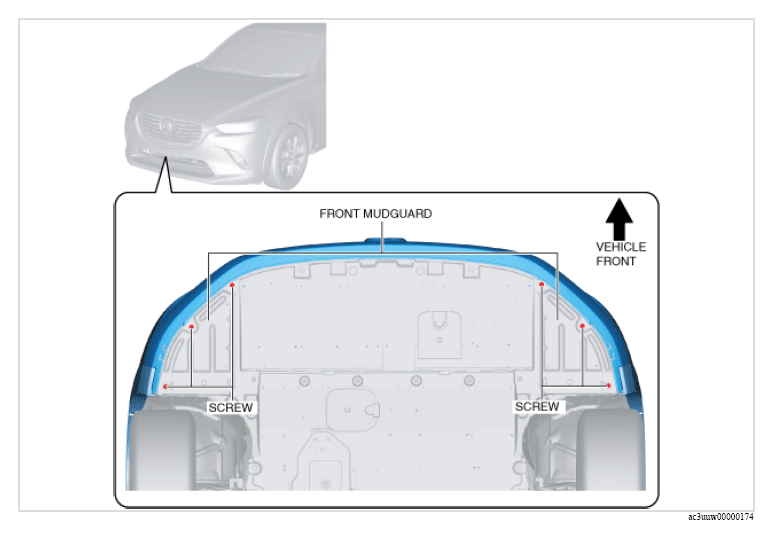

  17. Install the screws.
    G13151900Courtesy of MAZDA MOTORS CORP.
  18. Install the front over fender to the front bumper.
    G13151901Courtesy of MAZDA MOTORS CORP.

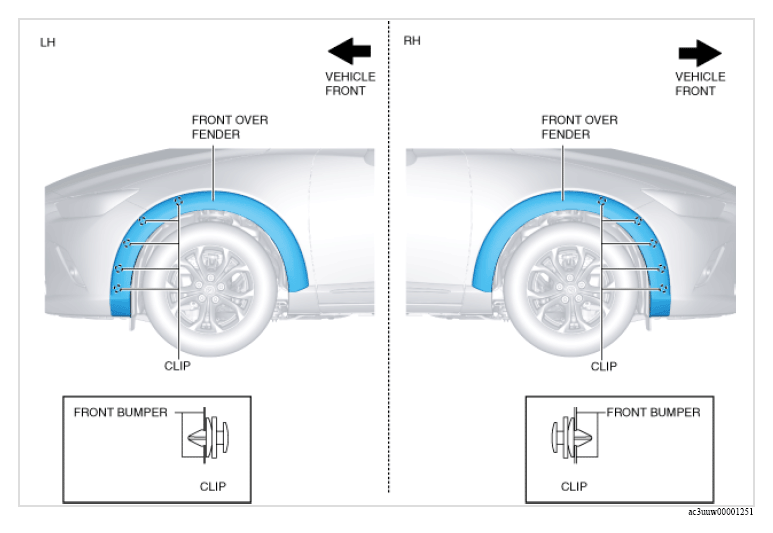

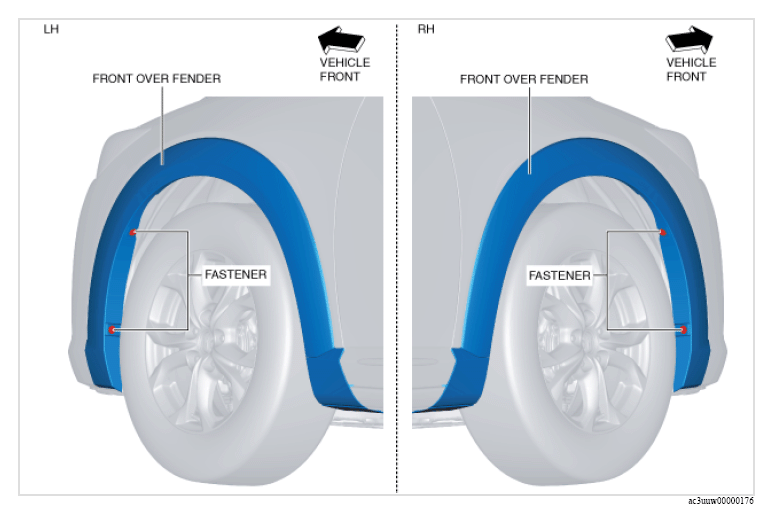

  19. install the fasteners.
    G13151902Courtesy of MAZDA MOTORS CORP.
  20. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
