On-Board Diagnostic - Active Driving Display
>>

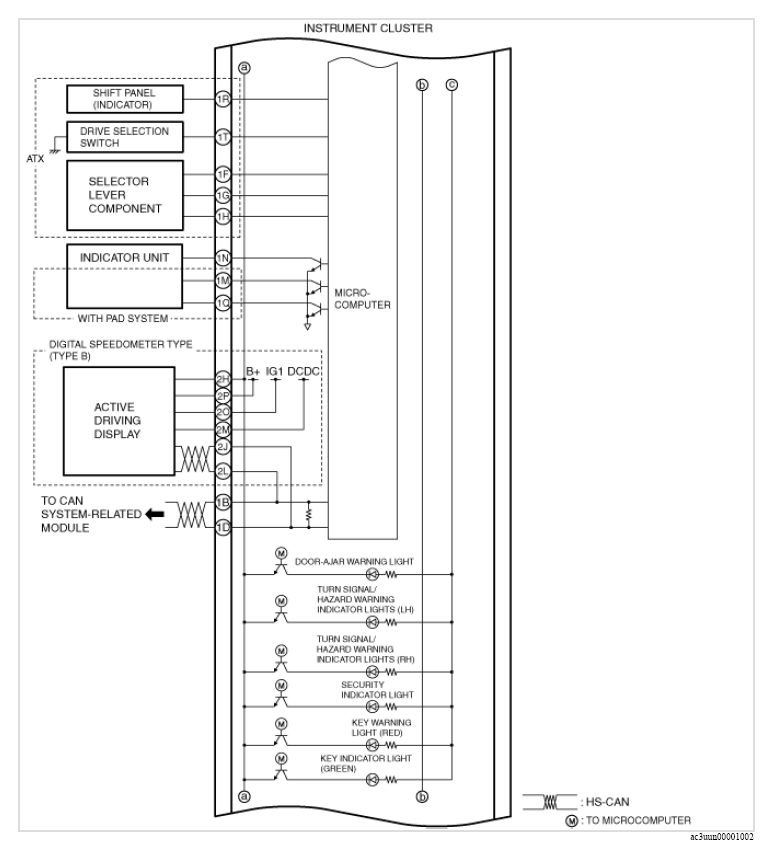

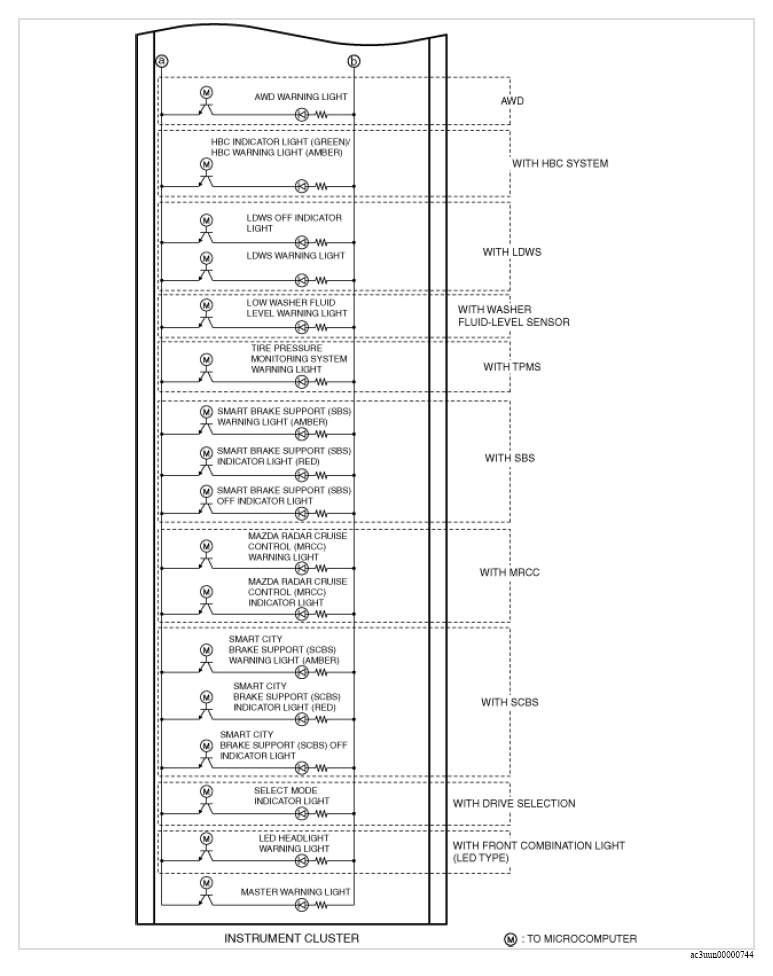

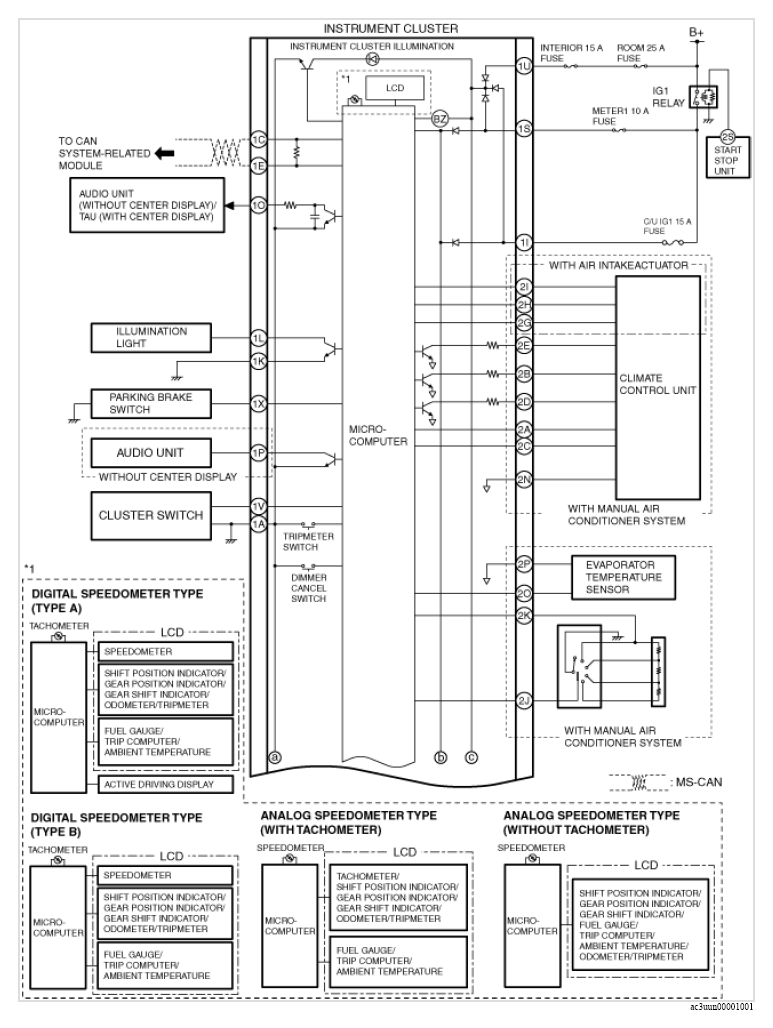

On-Board Diagnostic Wiring Diagram
On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
