DTC Table

NOTE:

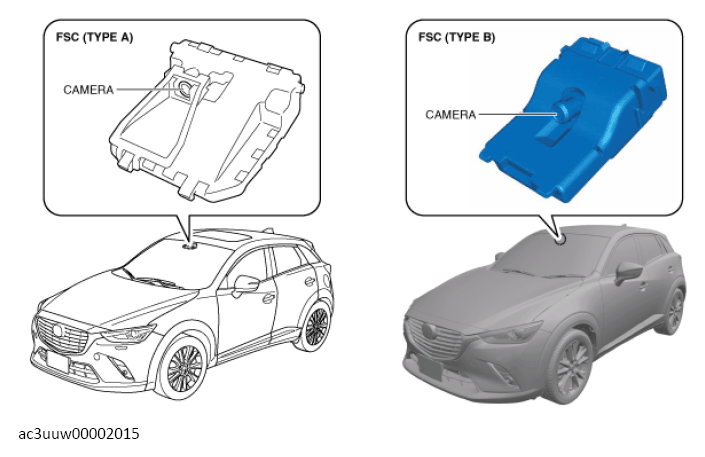

  • There are two types of forward sensing camera (FSC), type A and type B.
G13153818Courtesy of MAZDA MOTORS CORP.

x: Applicable-: Not applicable

DTC DESCRIPTION (FORWARD SENSING CAMERA (FSC))

DTC No. LDWS warning light Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light(2) Description Fail-safe Drive cycle Self test type Memory function Refer to
B115E:54 Illuminated Illuminated Forward sensing camera (FSC) aiming not completed x - C, D x (See DTC B115E:54 (FORWARD SENSING CAMERA (FSC)) .)
B115E:76(2) Illuminated Illuminated Forward sensing camera (FSC) axis deviation x - C, D x (See DTC B115E:76 (FORWARD SENSING CAMERA (FSC)) .)
B115E:78 Illuminated Illuminated Forward sensing camera (FSC) axis deviation (detected during mid-drive aiming) x - C, D x (See DTC B115E:78 (FORWARD SENSING CAMERA (FSC)) .)
B115E:9A Illuminated Illuminated Forward sensing camera (FSC) mid-drive aiming time-out x - C, D x (See DTC B115E:9A (FORWARD SENSING CAMERA (FSC)) .)
B13A6:11 Illuminated - LDWS switch/LDWS OFF switch circuit malfunction x - C, D x (See DTC B13A6:11 (FORWARD SENSING CAMERA (FSC)) .)
C0063:28(2) Illuminated Illuminated Yaw rate sensor poor accuracy x - C, D x (See DTC C0063:28 (FORWARD SENSING CAMERA (FSC)) .)
C1001:92 Illuminated Illuminated Poor functioning of forward sensing camera (FSC) x - C, D x (See DTC C1001:92 (FORWARD SENSING CAMERA (FSC)) .)
C1001:97 Illuminated Illuminated Forward sensing camera (FSC) poor visibility x - C, D x (See DTC C1001:97 (FORWARD SENSING CAMERA (FSC)) .)
U0001:88 Illuminated Illuminated Module communication error (HS-CAN) x - C, D x (See DTC U0001:88/U0100:00/U0104:00/U0121:00/U0131:00/U0140:00/U0151:00/U0155:00/U0156:00/U0214:00 (FORWARD SENSING CAMERA (FSC)) .)
U0100:00 Illuminated Illuminated Communication error with PCM x - C, D x
U0104:00(3) - Illuminated Communication error with radar unit x - C, D x
U0121:00 Illuminated Illuminated Communication error with DSC HU/CM x - C, D x
U0131:00 Illuminated Illuminated Communication error with EPS control module x - C, D x
U0140:00 Illuminated Illuminated Communication error with BCM x - C, D x
U0151:00(2) Illuminated Illuminated Communication error with SAS control module x - C, D x
U0155:00 Illuminated Illuminated Communication error with instrument cluster x   C, D x
U0156:00(4) - - Communication error with connectivity master unit (CMU) - - C, D x
U0214:00 Illuminated Illuminated Communication error with start stop unit x - C, D x
U0401:68 Illuminated Illuminated Error signal received from PCM x - C, D x (See DTC U0401:68 (FORWARD SENSING CAMERA (FSC)) .)
U0405:68(3) - Illuminated Error signal received from radar unit x - C, D x (See DTC U0405:68 (FORWARD SENSING CAMERA (FSC)) .)
U0415:68 Illuminated Illuminated Error signal receive d from DSC HU/CM x - C, D x (See DTC U0415:68 (FORWARD SENSING CAMERA (FSC)) .)
U0420:68 Illuminated Illuminated Error signal received from EPS control module x - C, D x (See DTC U0420:68 (FORWARD SENSING CAMERA (FSC)) .)
U0423:68 Illuminated Illuminated Error signal received from instrument cluster x - C, D x (See DTC U0423:68 (FORWARD SENSING CAMERA (FSC)) .)
U0452:4A(2) Illuminated Illuminated SAS control module serial number mismatch x - C, D x (See DTC U0452:4A (FORWARD SENSING CAMERA (FSC)) .)
U0515:68 Illuminated Illuminated Error signal received from start stop unit x - C, D x (See DTC U0515:68 (FORWARD SENSING CAMERA (FSC)) .)
U2005:86(1) Illuminated Illuminated Error signal received from PCM x - C, D x (See DTC U2005:86 (FORWARD SENSING CAMERA (FSC)) .)
U2100:00 Illuminated Illuminated Forward sensing camera (FSC) configuration error x - C, D x (See DTC U2100:00 (FORWARD SENSING CAMERA (FSC)) .)
U2101:00 Illuminated - Forward sensing camera (FSC) configuration error x - C, D x (See DTC U2101:00 (FORWARD SENSING CAMERA (FSC)) .)
U2300:51(2) Illuminated Illuminated Vehicle identification number (VIN) mismatch x - C, D x (See DTC U2300:51 (FORWARD SENSING CAMERA (FSC)) .)
U2300:54(2) Illuminated Illuminated Configuration data not received from instrument cluster x - C, D x (See DTC U2300:54 (FORWARD SENSING CAMERA (FSC)) .)
U2300:55(2) Illuminated Illuminated Instrument cluster configuration not implemented x - C, D x (See DTC U2300:55 (FORWARD SENSING CAMERA (FSC)) .)
U2300:56(2) Illuminated Illuminated Configuration data unmatched with instrument cluster x - C, D x (See DTC U2300:56 (FORWARD SENSING CAMERA (FSC)) .)
U2300:64(2) Illuminated Illuminated Instrument cluster configuration error x - C, D x (See DTC U2300:64 (FORWARD SENSING CAMERA (FSC)) .)
U3000:04 Illuminated Illuminated Forward sensing camera (FSC) internal malfunction x - C, D x (See DTC U3000:04/U3000:09/U3000:42/U3000:49 (FORWARD SENSING CAMERA (FSC)) .)
U3000:09(1) Illuminated Illuminated Forward sensing camera (FSC) internal malfunction x - C, D x
U3000:42 Illuminated Illuminated Forward sensing camera (FSC) internal malfunction x - C, D x
U3000:49 Illuminated Illuminated Forward sensing camera (FSC) internal malfunction x - C, D x
U3000:98(2) Illuminated Illuminated Forward sensing camera (FSC) stops functioning due to temporary high temperature x - C, D x (See DTC U3000:98 (FORWARD SENSING CAMERA (FSC)) .)
U3003:16 Illuminated Illuminated Forward sensing camera (FSC) low power supply voltage input x - C, D x (See DTC U3003:16 (FORWARD SENSING CAMERA (FSC)) .)
U3003:17 Illuminated Illuminated Forward sensing camera (FSC) high power supply voltage input x - C, D x (See DTC U3003:17 (FORWARD SENSING CAMERA (FSC)) .)
C: CMDTC self test, D: ODDTC self test
(1) Type A

(2) Type B

(3) With mazda radar cruise control (MRCC) system

(4) With center display
