DTC P0480-00: Cooling Fan Relay No. 1 Control Circuit Malfunction: Notes
DTC P0480:00 PCM (SKYACTIV-G 2.5 - WITH CYLINDER DEACTIVATION) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0480:00 |
COOLING FAN RELAY NO. 1 CONTROL CIRCUIT MALFUNCTION |
| DETECTION CONDITION |
- The cooling fan relay No. 1 control voltage at the PCM terminal 2AM is low or cooling fan relay No. 1 control current is high for a continuous 5 s relative to the PCM control signal.
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |
- Cooling fan relay No. 1 malfunction
- Short to ground or open circuit in cooling fan relay No. 1 power supply circuit

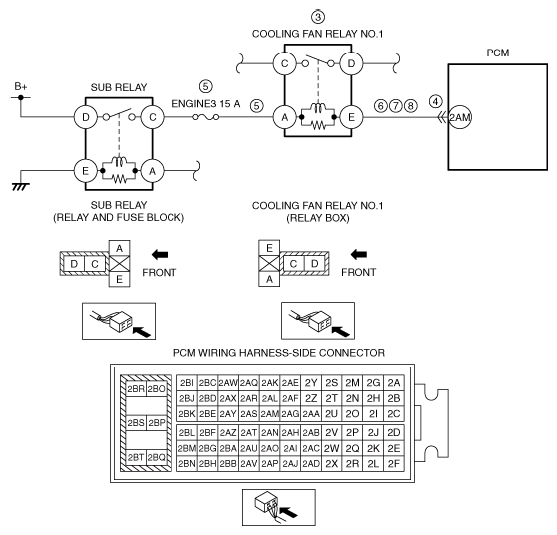

- Short to ground in wiring harness between sub relay terminal C and cooling fan relay No. 1 terminal A
- ENGINE3 15 A fuse malfunction
- Open circuit in wiring harness between sub relay terminal C and cooling fan relay No. 1 terminal A
- PCM connector or terminals malfunction
- Short to ground in wiring harness between cooling fan relay No. 1 terminal E and PCM terminal 2AM
- Short to power supply in wiring harness between cooling fan relay No. 1 terminal E and PCM terminal 2AM
- Open circuit in wiring harness between cooling fan relay No. 1 terminal E and PCM terminal 2AM
- PCM malfunction
|
