Set Plate Removal/Installation

  1. Remove the fasteners.

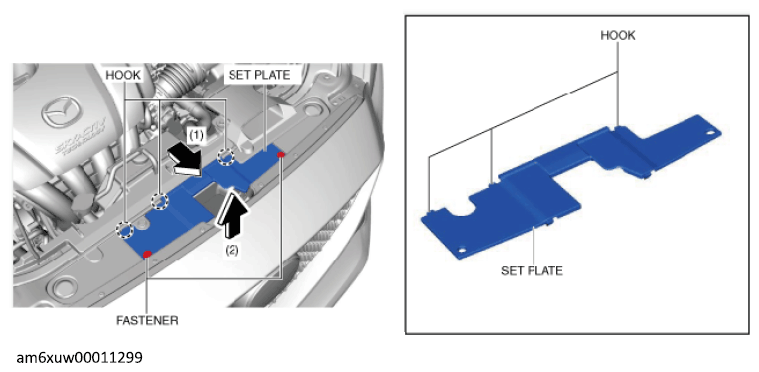

    Fig 1: Fasteners
    G12236034Courtesy of MAZDA MOTORS CORP.
  2. Pull the set plate in the direction of the arrows in the order of (1), (2) and remove it while detaching the hooks.
  3. Install in the reverse order of removal.
