Glove Compartment Removal/Installation

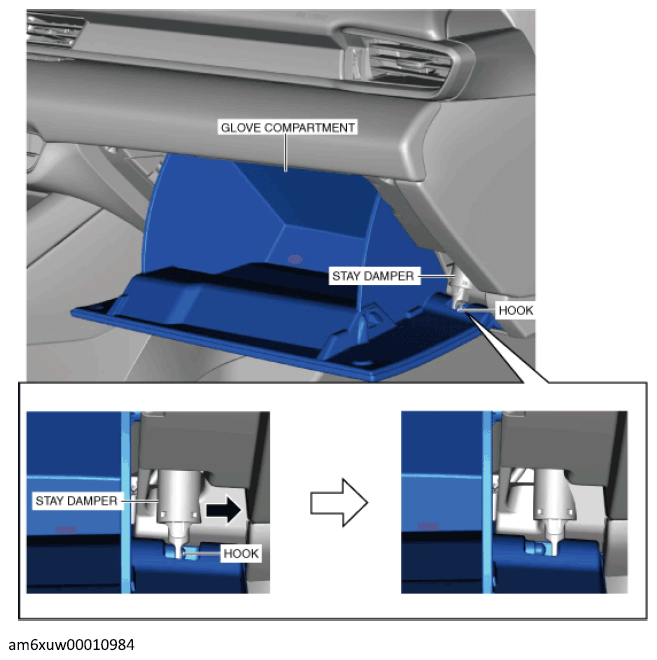

- Pull the stay damper in the direction of the arrow shown in the figure below and remove the hook.
CAUTION:
- If the glove compartment is closed without being joined to the stay damper, the stay damper may be damaged. Verify that the stay damper is joined to the glove compartment before closing the glove compartment.
Courtesy of MAZDA MOTORS CORP.

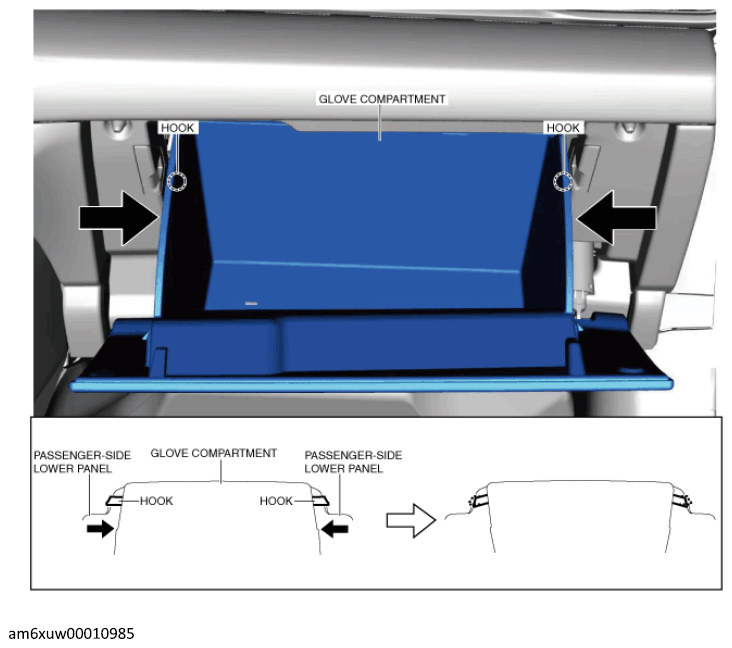

- Press both ends of the glove compartment in the directions of the arrows shown in the figure below and detach the hooks.
Courtesy of MAZDA MOTORS CORP.

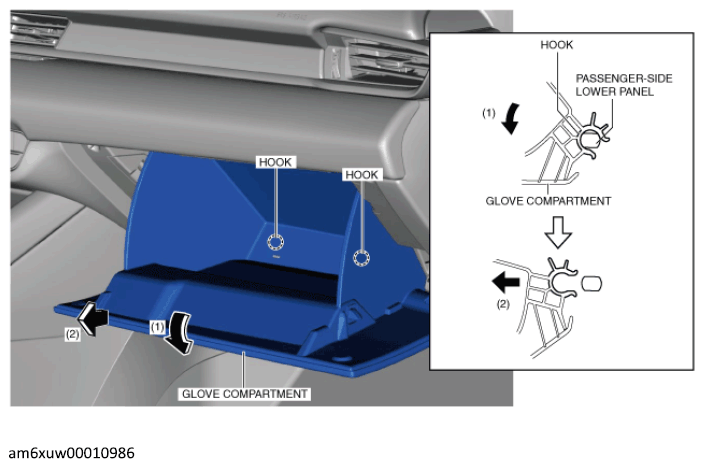

- Lower the glove compartment in the direction of arrow (1) shown in the figure below, pull it up in the direction of arrow (2), and remove it while detaching the hooks.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
