Instrumentation/Driver Info. Location Index: Exterior

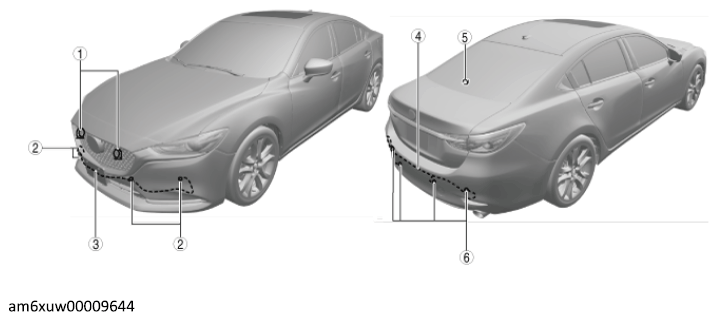

Fig 1: Instrumentation/Driver Information Legend Description Chart - Exterior

Courtesy of MAZDA MOTORS CORP.

INSTRUMENTATION/DRIVER COMPONENT OPERATIONS (EXTERIOR)

Component No.	Refer to
1	See HORN REMOVAL/INSTALLATION See HORN INSPECTION
2	See FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION See FRONT ULTRASONIC SENSOR INSPECTION See
3	See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION See FRONT ULTRASONIC SENSOR SHORT-CORD INSPECTION
4	See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION See REAR ULTRASONIC SENSOR SHORT-CORD INSPECTION
5	See REAR PARKING SENSOR BUZZER REMOVAL/INSTALLATION See REAR PARKING SENSOR BUZZER INSPECTION
6	See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION See REAR ULTRASONIC SENSOR INSPECTION
