Fuel Gauge/LCD Inspection

  1. Connect the M-MDS to the DLC-2.
  2. After vehicle identification, select the following from the M-MDS initialization screen.
    1. "Data logger"
    2. "Module"
    3. "IC"

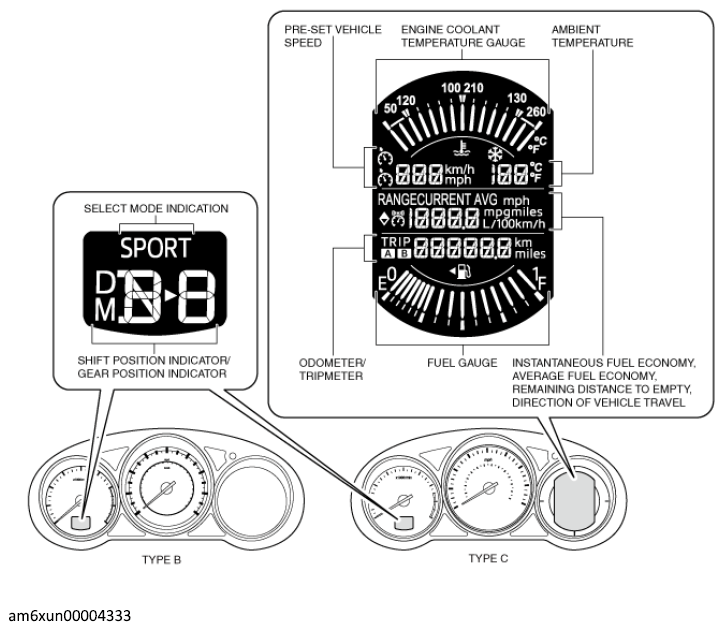

  3. Using "LCD_SEG", verify that the LCD is illuminated.
    Fig 1: Screen Display - M-MDS Initialization
    G12237634Courtesy of MAZDA MOTORS CORP.
    • If there are any non-illuminated area, replace the instrument cluster.
