Fuel Gauge Sender Unit (Sub)

CAUTION:

If the servicing is performed with the fuel gauge indicating 1/2 or more, fuel leakage may occur because the fuel level surface is higher than the fuel gauge sender unit installation surface. When the fuel gauge indicates 1/2 or more, always drain the fuel before servicing so that the fuel tank level is 1/3 or less.

Perform the "Fuel Line Safety Procedure" referring to the "BEFORE SERVICE PRECAUTION".
Using the following procedure:
Fuel gauge indicates 1/2 or more
1. Drain the fuel.
Fuel gauge indicates less than 1/3
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
Remove the screws.

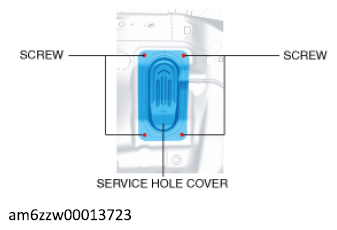

Fig 1: Service Hole Cover And Screws
Courtesy of MAZDA MOTORS CORP.
Remove the service hole cover.
Disconnect the connector.

Fig 2: Service Hole Cover Connector
Courtesy of MAZDA MOTORS CORP.
Remove the screws.

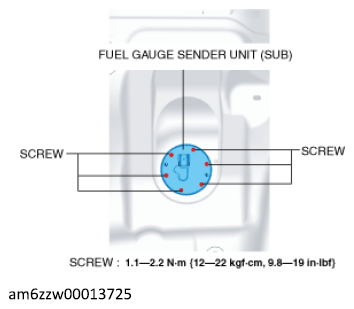

Fig 3: Fuel Gauge Sender Unit (Sub) And Screws With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the fuel gauge sender unit (sub).

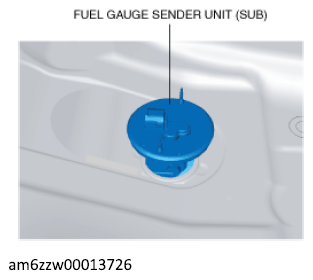

Fig 4: Fuel Gauge Sender Unit (Sub)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Perform the fuel leakage inspection referring to "AFTER SERVICE PRECAUTION".
