Front Parking Sensor Buzzer (With Front Ultrasonic Sensor)

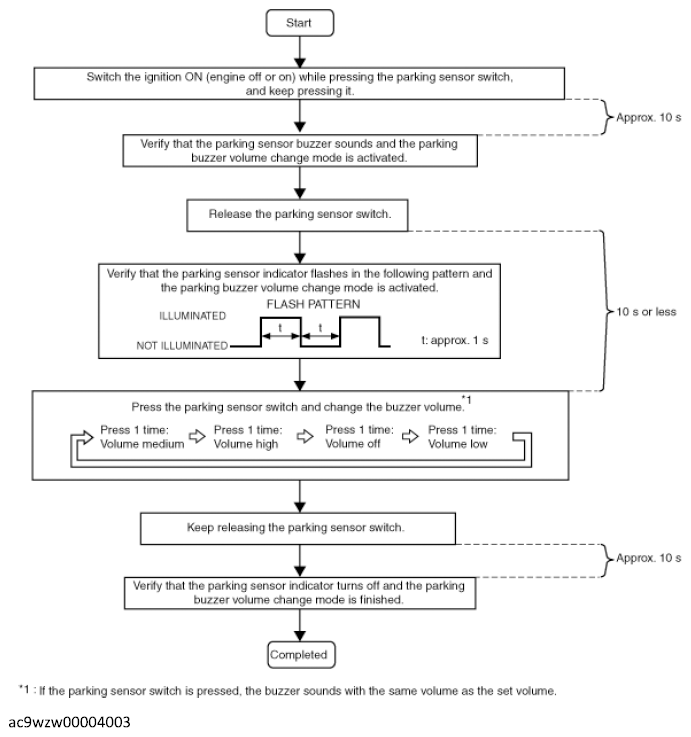

Fig 1: Front Parking Sensor Buzzer Flowchart (With Front Ultrasonic Sensor)

G12237586

Courtesy of MAZDA MOTORS CORP.
