Intake-Air System Removal/Installation: Notes

WARNING:

A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

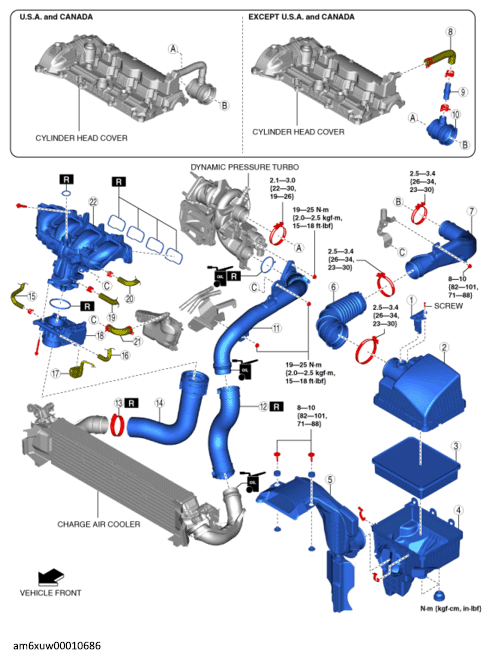

Fig 1: Intake-Air System Components With Torque Specification (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	MAF sensor/IAT sensor No. 1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 1 REMOVAL/INSTALLATION .)
2	Air cleaner cover (See Air Cleaner Cover Installation Note .)
3	Air cleaner element
4	Air cleaner case
5	Fresh-air duet (See Fresh-air Duct Removal Note .)
6	Air hose
7	Air Inlet pipe (See Air Inlet Pipe Removal Note .)
8	Breather hose
9	Ventilation pipe
10	Turbocharger air inlet hose
11	Turbocharger air outlet pipe (See Turbocharger Air Outlet Pipe Removal Note .)
12	Change air cooler inlet hose (See Charge Air Cooler Inlet Hose Removal Note .) (See Charge Air Cooler Inlet Hose Installation Note .)
13	Hose clamp (See Hose Clamp Installation Note .)
14	Charge air cooler outlet hose (See Charge Air Cooler Outlet Hose Removal Note .) (See Charge Air Cooler Outlet Hose Installation Note .)

Fig 2: Intake-Air System Components With Torque Specification (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
