Charge Air Cooler Removal/Installation: Notes

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Remove in the order shown in the figure below.

Install in the reverse order of removal.

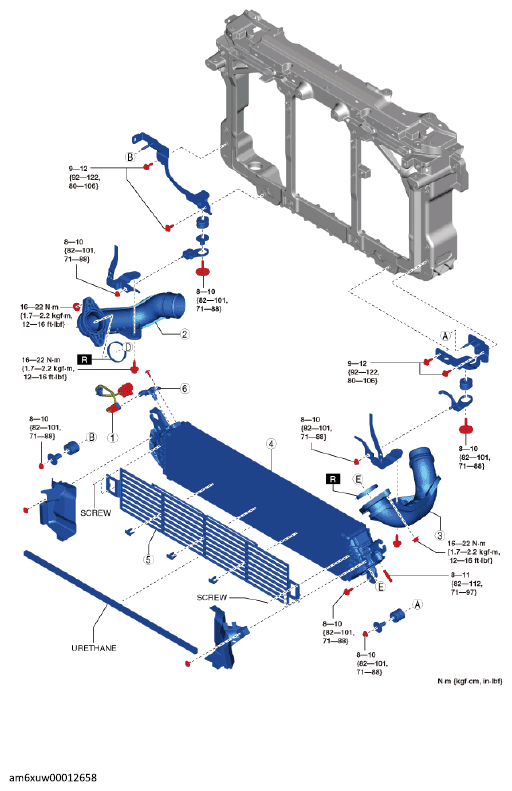

Fig 1: Charge Air Cooler Components With Torque Specification

G12229076

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Boast pressure sensor/boost air temperature sensor connector (See BOOST PRESSURE SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
2	Charge air cooler outlet pipe
3	Charge air cooler inlet pipe (See Charge Air Cooler Inlet Pipe Installation Note .)
4	Charge air cooler (See Charge Air Cooler Removal Note .) (See Charge Air Cooler Installation Note .)
5	Protector
6	Boost pressure sensor/boost air temperature sensor (See BOOST PRESSURE SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
