On-Board Diagnostic Wiring Diagram (Instrument Cluster)
On-Board Diagnostic Wiring Diagram (Instrument Cluster)

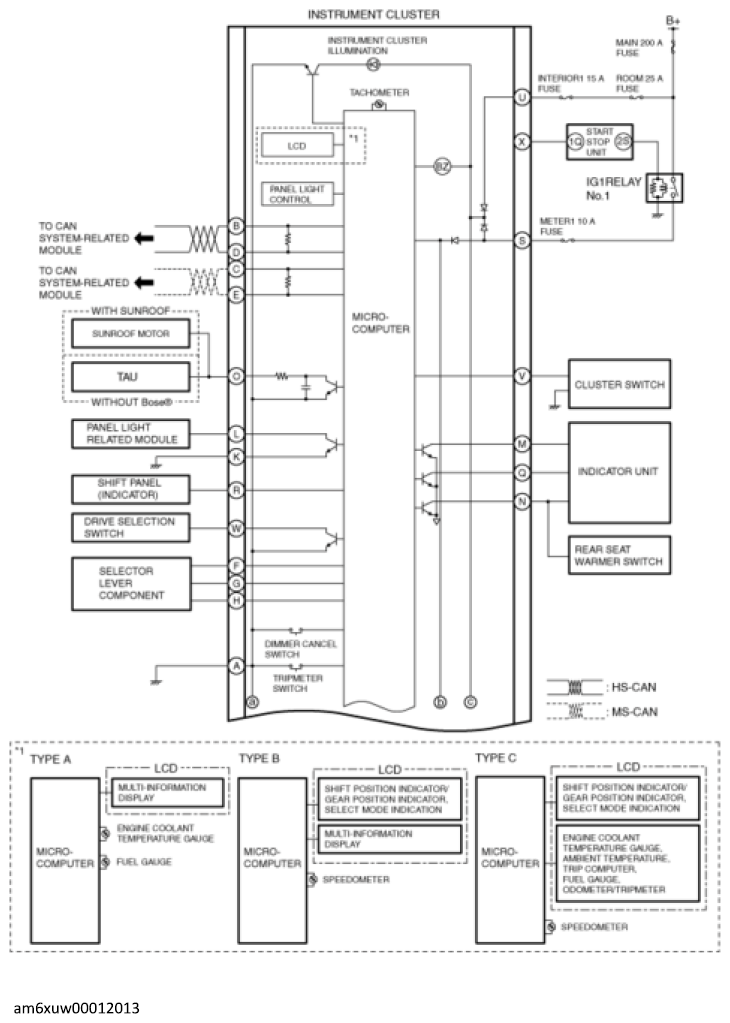

Fig 1: Instrument Cluster On-Board Diagnostic Wiring Diagram (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

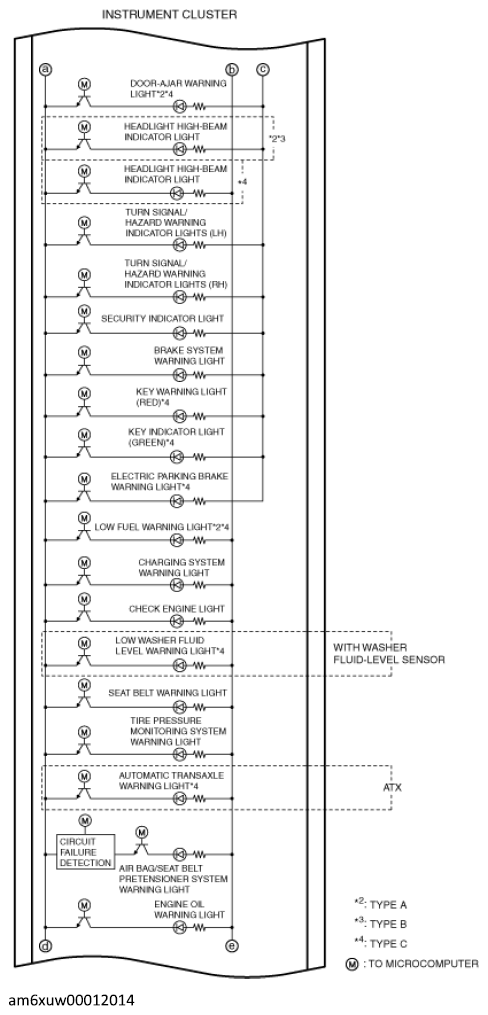

Fig 2: Instrument Cluster On-Board Diagnostic Wiring Diagram (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

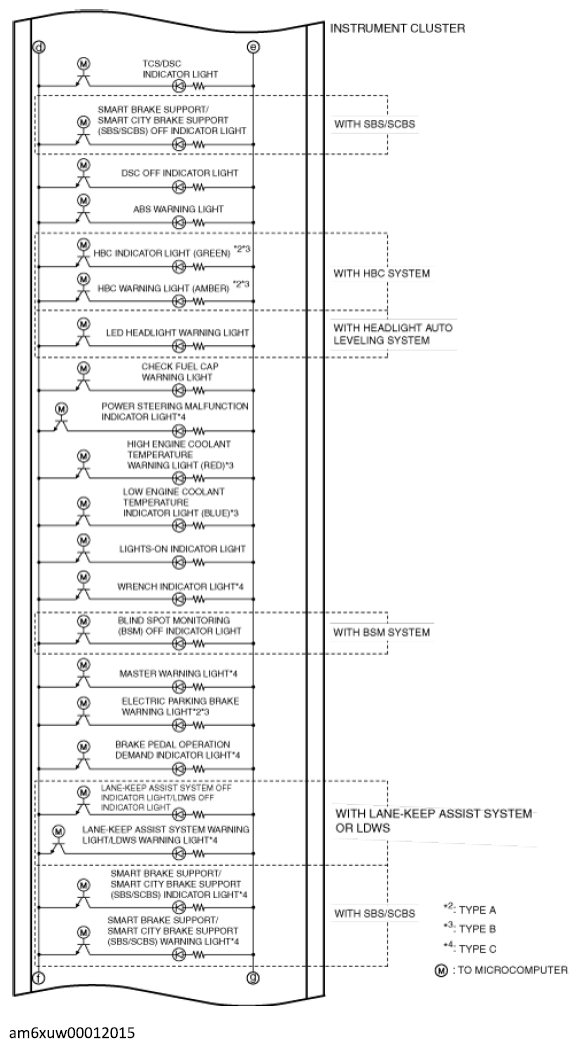

Fig 3: Instrument Cluster On-Board Diagnostic Wiring Diagram (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

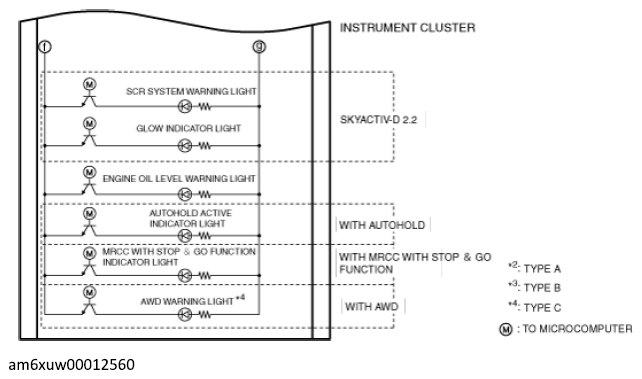

Fig 4: Instrument Cluster On-Board Diagnostic Wiring Diagram (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
