DTC U2105-02: Drive Selection Switch Circuit Malfunction: Notes
DTC U2105:02 (INSTRUMENT CLUSTER) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Drive Selection Switch Circuit Malfunction |
| Detection Condition |
- Instrument cluster detects an open circuit in the drive selection switch circuit for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe Function |
Not applicable |
| Possible Cause |
- Drive selection switch connector or terminal malfunction

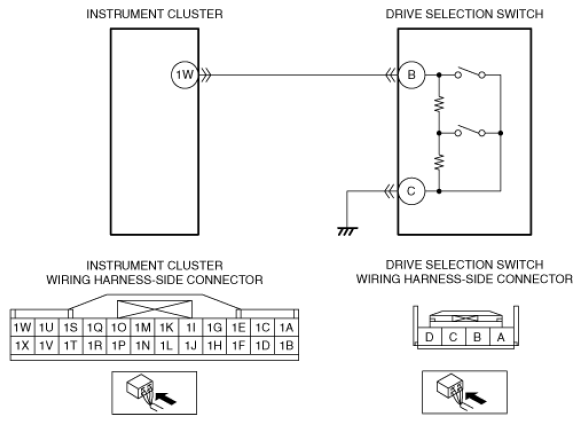

- Open circuit in wiring harness between drive selection switch terminal C and body ground
- Instrument cluster connector or terminal malfunction
- Open circuit in wiring harness between instrument cluster terminal 1W and drive selection switch terminal B
- Drive selection switch malfunction
- Instrument cluster malfunction
|
|
|
